Einleitung

  1. BQ2AWdrxZSoSTYKv
    BQ2AWdrxZSoSTYKv
    PnlAaXBUEvbNyFOl
    1YjWXN1I3HRcPbVP
    • Remove the three Phillips #00 screws at the bottom of the device.

  2. Er6DELMh1SdNZUTK
    Er6DELMh1SdNZUTK
    cGtDxPqJjbpxLjiA
    • Remove the two Phillips #00 screws to the left and right of the keyboard connector.

  3. ChyRCHWYdAp5rkYT
    • Pull on one of the bottom corners to begin to pull off the back plate.

  4. imfYCjACjMCbXC2A
    imfYCjACjMCbXC2A
    TFtmFvOOeLVOXtns
    • Work around the outside of the chassis, using the spudger to pry the backplate off.

    • After doing this for about half the device, the backplate should pop right off.

  5. fiKvJLuZbNigdSSZ
    • Remove the tape over the connectors on the motherboard and other side of the battery.

  6. 2kNIHlXSdOKKJAFg
    • Disconnect the red and black keyboard wires connecting the battery to the motherboard.

  7. IaVOIxN5IFAEuPLS
    • Disconnect the black ribbon cable running over the battery. Flip up the black clamp and pull the cable out.

  8. w4OZFDLaIiKDT6iZ
    w4OZFDLaIiKDT6iZ
    bEhsCmK1W3vM5DEk
    • Remove the cable over the battery connecting the motherboard and the power connector.

    • Flip up the black clamp and pull the cable out.

  9. AGnxm6riXcTILemL
    AGnxm6riXcTILemL
    LYevsUnSnVqSEpGu
    • Pull out battery. It is taped to the device so it is safe to pull out.

    • Look for damage to the battery. If damaged, make sure to not get any acid on your fingers.

  10. BYVLbbjlE1TFXIwm
    • Identify the grey wire on the right side of the device.

  11. rwxMwIAcu2sCeQLb
    • Remove the orange ribbon cable over the wire.

  12. 5oZYVPS1WEqOcsFU
    • Remove the antenna using a soldering iron.

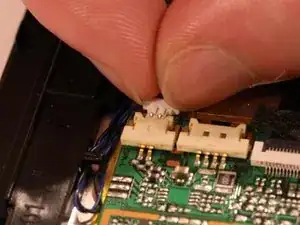

  13. 1gDty2g1KwMhFYC5
    • Remove the blue and black wire from the top of the motherboard.

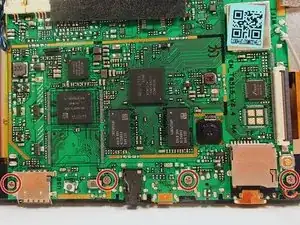

  14. wlsltCpGDEZTDmQB
    • Remove the screws from the motherboard.

  15. PUonoDVtIib2AQu2
    • Remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
