Einleitung
If your screen is cracked or has dead pixels and is in need of replacement, this guide explains how to remove the screen from the TV.
Werkzeuge
-
-
Lay the TV flat with the screen facing down.
-
Remove the four, 12mm Phillips #2 screws from the back of the TV stand. Support the TV from underneath as you remove the screws, so the bottom does not fall on the table.
-
Remove the stand by lifting it away from the TV's backing.
-
-
-
Remove the twelve, 6mm Phillips #2 screws from the middle of the TV's rear casing.
-
Remove the seven, 9mm Phillips #2 screws from the outer edge of the TV's rear casing.
-
While holding the screen down, pull the back panel up slowly, ensuring that you do not forcibly disconnect the remaining ribbon cable.
-
-
-
Position the television to where the back panel is resting on the table and the screen is vertical.
-
Peel the tape covering the ribbon cable horizontally.
-
-
-
Pinch the clamps on both sides of the ribbon cable casing to detach it from the screen panel.
-

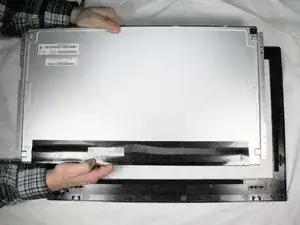

Remove the screen to isolate the back panel.
-
-
-
Remove the four, 12mm Phillips #2 screws from the outer edge of the back of the screen panel.
-
-
-

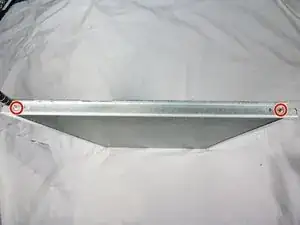

Remove the two, 5mm Phillips #2 screws from the metal bracket attached to the horizontal side of the TV and take the bracket off.
-
Repeat this process on the other side of the TV to completely isolate the screen.
-
To reassemble your device, follow these instructions in reverse order.
