Einleitung
Replacing the onboard speaker for the RCA CC310.
Werkzeuge
-
-
Remove the six 7.9mm Phillips #0 screws on the back and bottom.
-
Remove the one 3.8mm Phillips #0 screw on the bottom.
-
Remove the two 7.5mm Phillips #0 screws on the back and bottom.
-
-
-
Remove 5.8mm Phillips #1 screw from the side button panel.
-
Slide the viewfinder all the way to the right and remove the 7.9mm Phillips #0 screw.
-
-
-
Pull the left panel away from the rest of the camcorder.
-

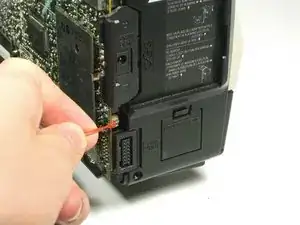

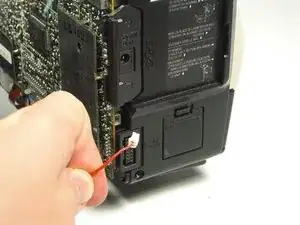

Unplug the red speaker cable located at the rear of the device.
-
-
-

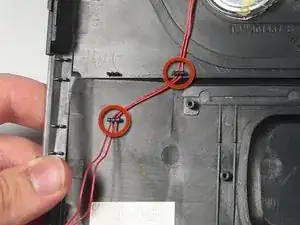

Locate the speaker on the removed panel. Find the groove on the top left side of the speaker.
-

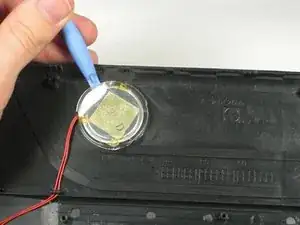

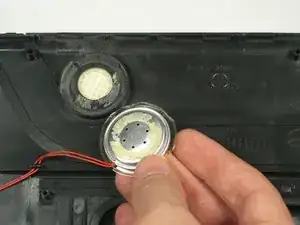

Pry the plastic up with a spudger until the glue breaks and the speaker is detached.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
