This guide will instruct on how to replace a malfunctioning Viewfinder assembly on the RCA CC310.
Werkzeuge
-
-

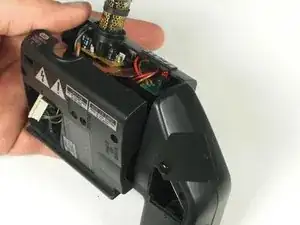

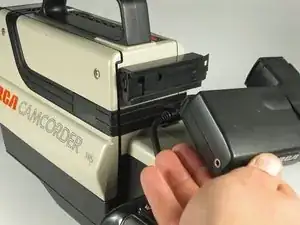

Slide a spudger between the plastic rail and the metal tab on the left side of the rail. Push away from the camcorder to release the flap.
-
Slide the lifted flap towards the viewfinder assembly until the viewfinder is free from the rail.
-
-
-

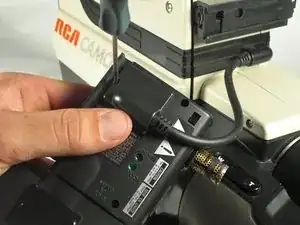

Unscrew the 7mm ph#0 screw on the underside where the cable connects.
-

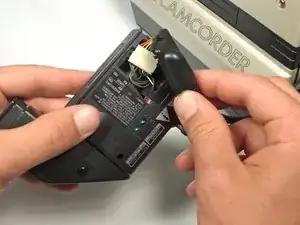

Lift the plastic where the cable connects off of the viewfinder assembly.
-

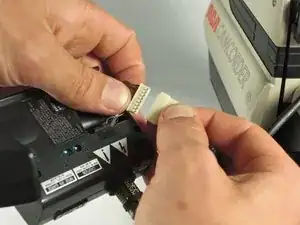

Disconnect the cable inside by pulling it apart.
-
-
-

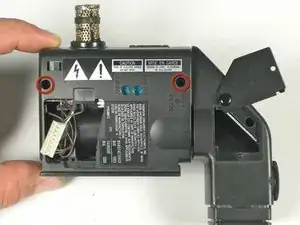

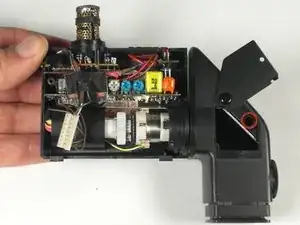

Unscrew two 7.0mm ph#0 screws on the underside of the viewfinder assembly.
-

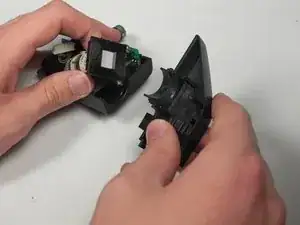

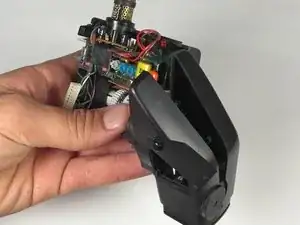

Lift the viewfinder plastic assembly up and remove.
-
-
-

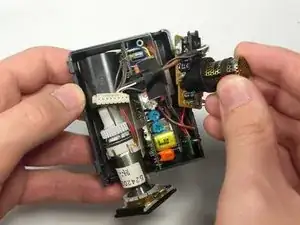

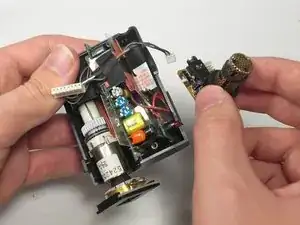

Lift the microphone circuit board straight up.
-
Unclip the cable connected to the circuit board.
-
-
-
Lift plastic housing and guide the wires from underneath.
-

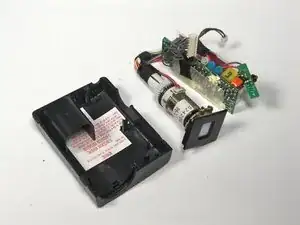

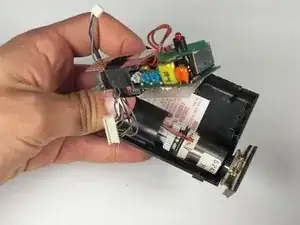

Lift out the entire circuit board and viewfinder.
-
Replace entire circuit board and viewfinder assembly.
-
To reassemble your device, follow these instructions in reverse order.
