Einleitung

  1. drO36gfGoaPUWbBr
    drO36gfGoaPUWbBr
    dFrHjRoeqpKfJi3v
    • Remove the two Phillips screws from the silver cover at the top of the Lyra.

    • Slowly wiggle the silver cover while pulling it away from the device.

  2. mSWjogCEjHZNEsFV
    mSWjogCEjHZNEsFV
    NaYDx5uAWXQWNVSG
    • Remove the two Phillips screws from the bottom of the device, next to the charger port and Compact Flash release button.

    • Pull the silver case from the bottom of the device.

  3. PnVlGHOmxSNbGQGO
    PnVlGHOmxSNbGQGO
    3sWE4AsA61vymGr5
    sigmxLubsUfmNuXM
    • Carefully pry up the screen with a plastic opening tool.

    • Disconnect the screen's ribbon cable from the circuit board.

    • Remove the screen.

  4. XArOcxUANAqSXP4L
    XArOcxUANAqSXP4L
    PlL5Beh5D2qXcdCe
    • Open the case of the Lyra.

    • Remove the four screws that secure the motherboard to the frame of the Lyra X2400.

  5. T2r4aBNeCgn2jpuy
    T2r4aBNeCgn2jpuy
    WlXygBZZOyOIMNH3

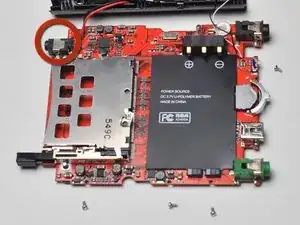

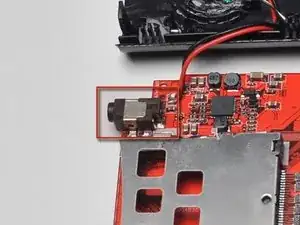

    • Locate the audio jack on the Lyra X2400. If you have difficulty locating this component look at the picture to the left.

    • Start using the solder/desolder tools to remove this component.

    • Once removed replace the old audio jack with a new audio jack.

    • Use soldering tools to reattach this component back to the main logic board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
