RCA Maven Pro 11 Battery Replacement

Geschrieben von: Brady Alexander Cristancho

Kommentare: 2

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

The battery is responsible for powering your RCA Maven Pro 11. The battery is glued onto the sub frame inside of the tablet. It is the white and yellow piece.

Werkzeuge

Schritt 1

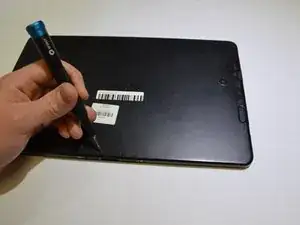

Remove all the 8 mm Phillips head screws on the side and back of the device.

Schritt 2

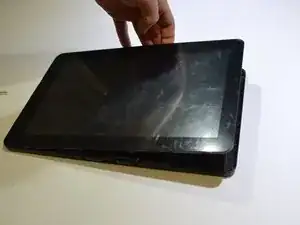

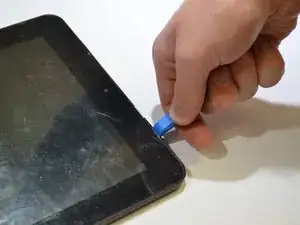

Pry off the cover by sticking a wedge in between the screen and the cover.
Be careful with the plastic because it can easily break.
Once the cover is partly removed, use your hands to take off the rest of the cover.

Schritt 3

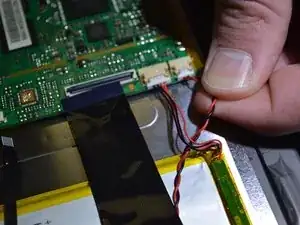

Pull out the pins circled in the picture.
These pins can be removed by hand. Just pull on them individually.

Schritt 4

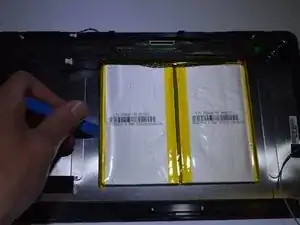

Use the opening tools to peel the battery off of the panel.
The glue is located in the corners.
Do not bend or puncture the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
