The volume button turns up and down the volume on the RCA Maven Pro 11. If the button becomes damaged and will no longer press down this guide can be utilized to remove and replace it.

  1. n4rJCCVUO5fjiLOj
    n4rJCCVUO5fjiLOj
    vVgbS4NgADDBrkma
    • Remove all the 8 mm Phillips head screws on the side and back of the device.

  2. gp6DiqBCxTkq6HCS
    gp6DiqBCxTkq6HCS
    qtGNKPflNLpaNiE3
    • Pry off the cover by sticking a wedge in between the screen and the cover.

    • Be careful with the plastic because it can easily break.

    • Once the cover is partly removed, use your hands to take off the rest of the cover.

  3. fSFDbbBCmTlJHFXj
    fSFDbbBCmTlJHFXj
    LCxGkonjo4IBULje

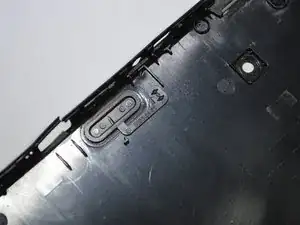

    • Locate the volume button on the inside of the cover.

    • Slide a wedge between the cover and the volume button and lightly lift it off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
