RCA RCT6203W46 Battery Replacement

Geschrieben von: Nicholas Alexander
  • Kommentare: 4
RCA RCT6203W46 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

A tablet that is unable to turn on is a sign that the battery needs to be replaced. Follow this guide to replace your tablet's battery

  1. AUoDNjaKdJbnLhVx
    AUoDNjaKdJbnLhVx
    1TkVqwPNJHNw6bTL

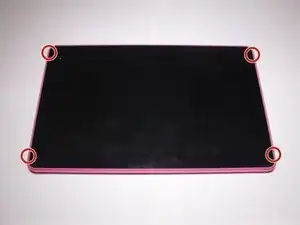

    • Make sure the device is off to reduce the chance of an electrical shock. To turn off the device, press and hold the power button.

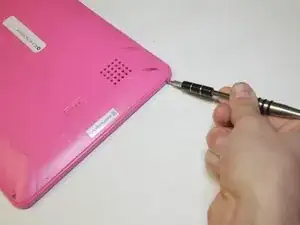

    • Use a Phillips #00 Screwdriver to unscrew the 4mm (5/32 in.) screws from the back cover of the tablet.

  2. imZhJZWpe2yN1Mtj
    imZhJZWpe2yN1Mtj
    uOnFP5rAxPvHqkxO

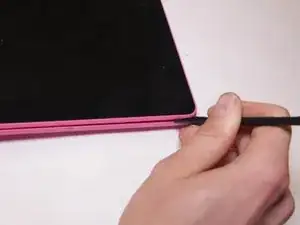

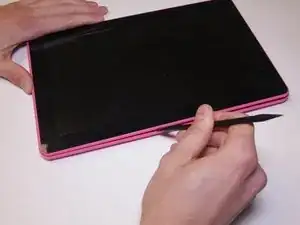

    • Use a spudger to pry the back cover. Start from one edge of the back cover and slide across until the cover is lifted from the tablet body. Repeat for all edges.

  3. NI3RTrgtBdLgyUBS

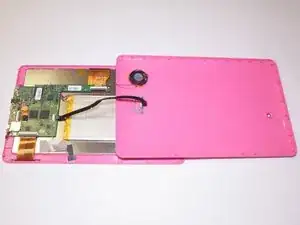

    • Open the tablet cover carefully and slowly lengthwise.

    • The keyboard wire ribbon and rear speaker wire should be intact and connected with the back cover.

    • Opening the tablet abruptly may tear or damage cover attachments.

  4. EqWRYji4SukCgjTK
    EqWRYji4SukCgjTK
    KGKJ63OeFhBQYUmG

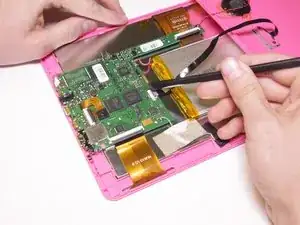

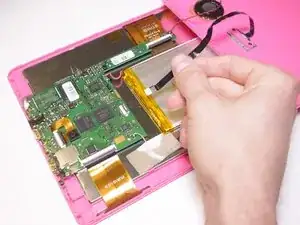

    • Use a spudger to flip up the flap of the ZIF connector that holds the keyboard wire ribbon.

    • Remove the wire ribbon from clamp.

  5. WCyyhYCrOVJYPLnk
    WCyyhYCrOVJYPLnk
    5J6peTNW5PFjKmBe

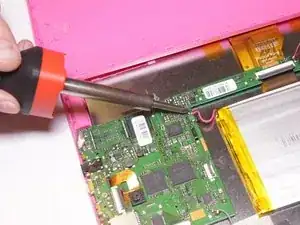

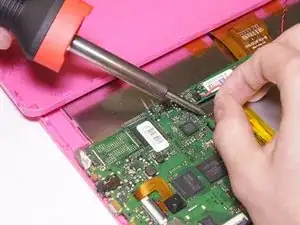

    • Use a soldering iron to melt the solder then remove the red and black wire from the motherboard.

  6. SCQGNSN2WwNdttSA

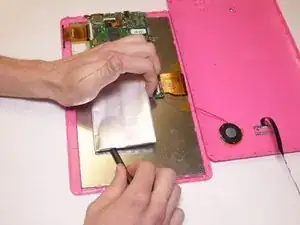

    • Use a spudger to pry and slide underneath the battery to unstick it from the LCD metal plate. It may take a good amount of force to remove.

    • Try to decrease battery deformation by using a spudger rather than prying with your hands.

    • Do not let battery fall back on adhesive, it will stick back onto the LCD metal plate.

    • Be careful to not puncture the battery. The battery may ignite or explode.

    Good photos. Reassembly with “reverse order” of steps not strictly true (surely not Step 5, e.g.), but most of us know what you mean : )

    ImJusThinkin -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Nicholas Alexander

Mitglied seit: 21/09/16

318 Reputation

3 Kommentare

If the battery is bad and the device is plugged in, should it power up or does the battery need to be in good order to power on? Pressing the power button produces a icon outline of a battery with a triangle and asterisk inside it.

John -

My tablet is doing a strange thing. I powers up then initializes and when it gets to where it says voyager it just stays there indefinately. Occasionally it will complete initalizing then will work for a while then go back to voyager and not work. Is there anything I can do to fix it?

Gerald Couvillion -

It seems to me that when we got these new they had to charge up for a while before they would “boot” (work) at all. So it stands to reason that if one has a “flaky” battery it might do that. I think that’s what my 7” RCA did when it died. From the 10’ manual, it says,

“Do not wait for the battery to be fully depleted before charging again. Keep the battery charged as needed. If tablet has not been used for a long period of time, the battery might be in over discharge protection mode and may take longer to charge.”

So a flaky battery may put the tablet in the “over discharge protection mode”, meaning it is “cut off” & won’t work.

Gotta ask: where is everyone learning to spell “definitely” as “definately”? Here’s a help to remember: the root word is “finite”, not “finate”.

Good luck with your tablet!

ImJusThinkin -
