RCA RCT6303W87 Battery Replacement

Geschrieben von: Akitaka Hashimoto
  • Kommentare: 6
RCA RCT6303W87 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

20 - 30 Minuten

Einleitung

  • This guide might be of use if the battery life of your device has degraded over time.
  • HAZARDS: Don't use heat to remove the adhesive of the battery because it can potentially cause a fire.

  1. SEXoGBAQU1FQgBiB
    SEXoGBAQU1FQgBiB
    d6Tkp3Cxy6lC2T2W
    awSbZEybrME3yh1n

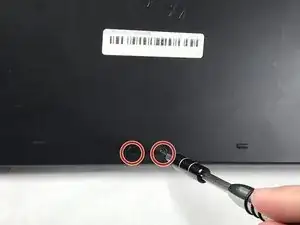

    • Remove nine 4.8mm screws around the case with a JIS #00 screwdriver.

  2. BCEEbpXMQgAaKXk2

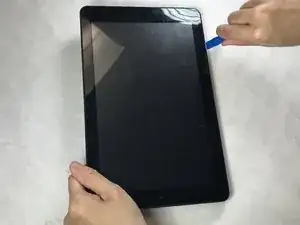

    • Insert plastic opening tool and slide it around the edges until the cover starts to pop off. It may be necessary to go over each side multiple times in order to pop the cover off.

    I bought a set of tools for opening the cover of the tablet but as much as I have tried going around each side, I have been unable to make any progress. I can’t get a tool to even begin to fit in between the cover and the tablet. Any suggestions?

    Thomas Kiker -

    I was getting very frustrated as I tried to separate it. I thought maybe there was glue around it's because my son had just replaced the screen. I have the RCA 11 and 1/2 Galileo Pro it has snaps all the way around it. Once I realized that it started to snap apart. I became a little bit more confident. You have to get the snaps to start unsnapping.

    Rebecca Pavelka -

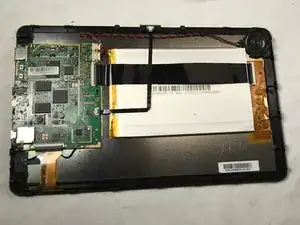

  3. YEYNc1wToEMTuHVb
    YEYNc1wToEMTuHVb
    copBfesCOLyKvjXX
    bc1SwIDS3TksSNkU

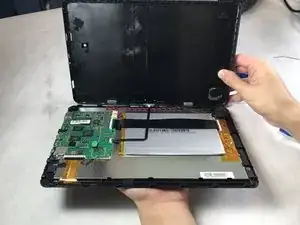

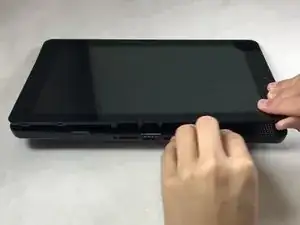

    • Remove cover completely.

  4. sVcNuOYCbfbJcuGp
    sVcNuOYCbfbJcuGp
    RDL6vBCfBmUB2Gmr
    dFARBGbsF5DEODUf

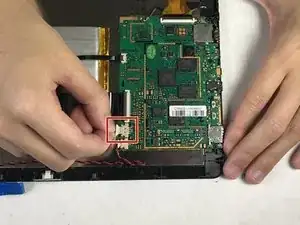

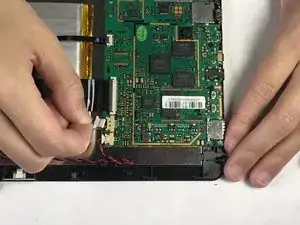

    • Disconnect battery cable from the motherboard.

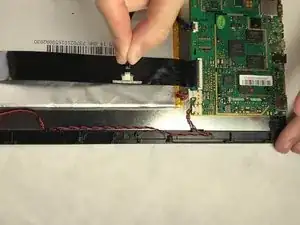

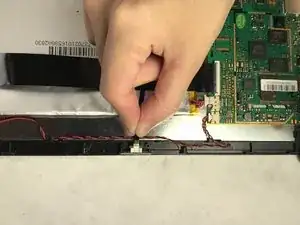

  5. xOMZZETxxbho1bZr
    xOMZZETxxbho1bZr
    ibE5JAuVPPFMMhOj
    ouq2LADWRGtLGI2w

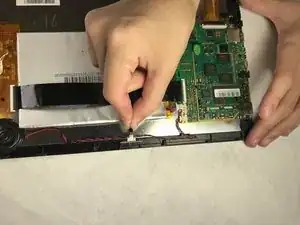

    • Pull the thin black keyboard connector off and set it aside.

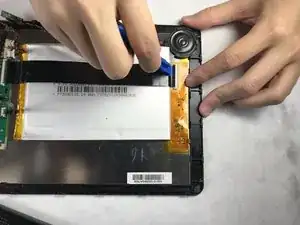

  6. lCD1Y1t6nZSvAYmG
    lCD1Y1t6nZSvAYmG
    QhOawWMGi3IUoKZt
    B1YjwqDZQmdUlgRj

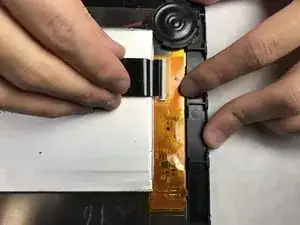

    • Disconnect the thick black band (bus) using a plastic opening tool or fingernail.

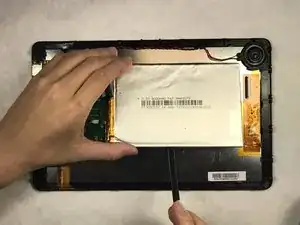

  7. sb6EeUwK1tgFZHCX

    • Use nylon spudger tool or plastic card to separate battery from the case.

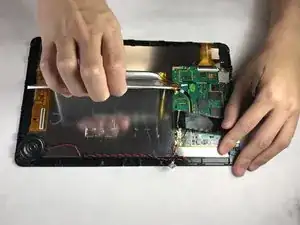

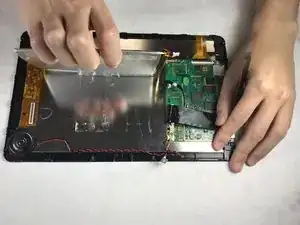

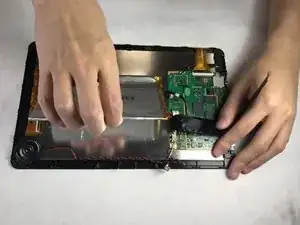

  8. lJHpsraAtbFN43jG
    lJHpsraAtbFN43jG
    Zesl1rwtkEVbI5HY
    BD6qpIee5JGoYoYr

    • Carefully peel off the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Akitaka Hashimoto

Mitglied seit: 27/03/18

510 Reputation

4 Kommentare

Thank you very much for the instructions. I was totally in the blind about what to unplug or not.

Diamante Swift -

“Remove nine 4.8mm screws “ but you only show pictures of 7 screws.

George Phillips -

Thanks for the instructions. I don’t know if mine is newer or older but the bus cable turns 90 degrees and goes under the keyboard cable so step 6 really wasn’t necessary. A plastic putty knife slid under old battery loosening the adhesive so you can slide it out from under the bus cable.

Steve Bunce -

Super helpful- worked great!

denise turley -
