RCA RCT6378W2 Screen Replacement

Geschrieben von: Matthew Wills
  • Kommentare: 1
RCA RCT6378W2 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

If the screen of the device becomes cracked or stops registering touch commands, use the following guide to replace the screen.

  1. SKT2HMjrMpDAhYvK

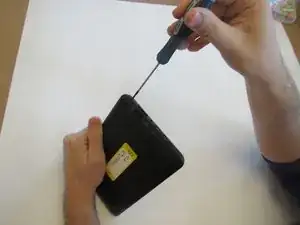

    • Remove two 2.4mm x 4mm screws from bottom of the tablet with Phillips #00 Screwdriver.

  2. SEecJxrs5l3HNrxF
    SEecJxrs5l3HNrxF
    oQppaFkfyEFuenbY

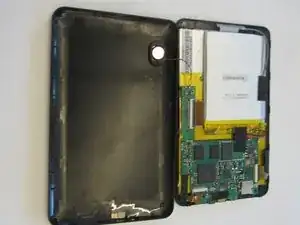

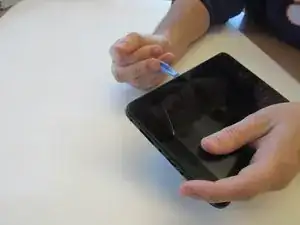

    • Remove back cover with plastic opening tool, exposing the battery and motherboard.

  3. tGExDypbWT2ufjQg
    tGExDypbWT2ufjQg
    cpQINpmRFdVT3fHP

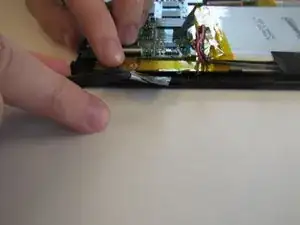

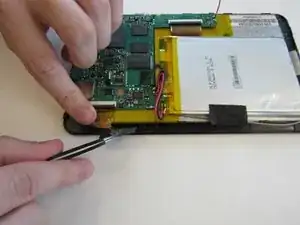

    • Using the tweezers, remove the black tape connecting the screen to the motherboard.

  4. WiUGJrVvdFjfVWyW
    WiUGJrVvdFjfVWyW
    FaoYZrIhYrfuUSxR

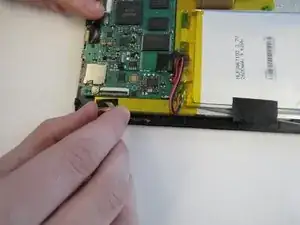

    • Pull up the switch to remove the input connector.

  5. N1UEAvha1IqPPZNU

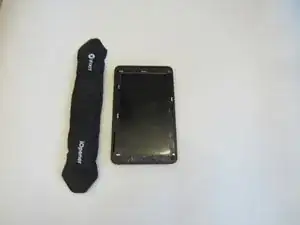

    • Heat the iOpener in the microwave, following the instructions provided with the tool. Lay the heated iOpener on the front screen for two minutes to soften the connection of the screen to the tablet.

  6. O2MSoxUq1UhtINAF
    O2MSoxUq1UhtINAF
    qmwm5oFxvSEu1BVG

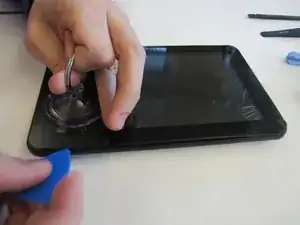

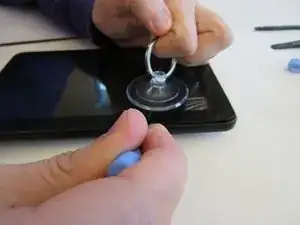

    • Use the suction cup and plastic opening tool to pry the front screen from the tablet.

Abschluss

To reassemble your device, follow these instructions in reverse order.
