This guide will explain in depth how to tear down the clock up until the removal, and replacement of the display. In order to take get to the display the speaker must be removed.

  1. UDSNgZSXDcPOkCxS
    UDSNgZSXDcPOkCxS
    DENsulSRatZWXAEL

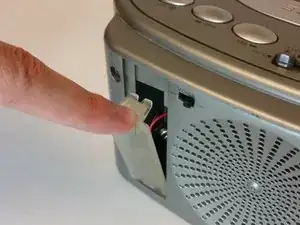

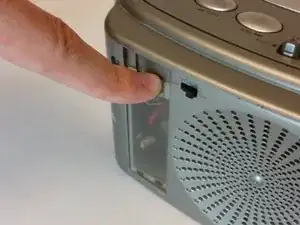

    • Push down on the clip to release pressure. The pull off the plastic cover.

  2. 4BovUQcJMFlSaWPr

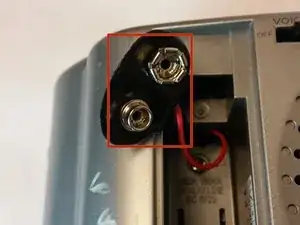

    • Remove the 9-volt battery from the battery terminal.

  3. ZijJUuFhEkvXtNkL

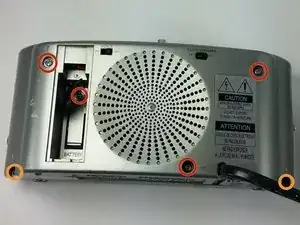

    • Take out the six screws located on the back of the device.

    • The red screws are 10 mm Phillip's #1. The orange screws are 13 mm Phillips #1.

    • Three screws are located on the back panel. One is located inside the battery carriage.

    • Two screws are located on the on the back panel on the bottom left and right side.

  4. hwsQyiOJDT6fM55R
    hwsQyiOJDT6fM55R
    nJsxgDgKGpHQwFZk
    l4Ia1a2hm2Ln32xS

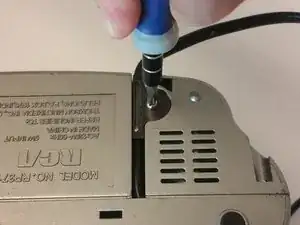

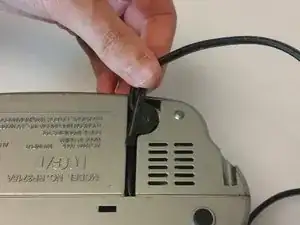

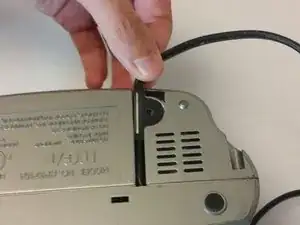

    • Remove the 10 mm Phillip's #1 screw.

    • Then remove the metal reinforcement.

  5. A4DDyIfEACjf4vn6
    A4DDyIfEACjf4vn6
    GRIrKZGNJhSEmdgK

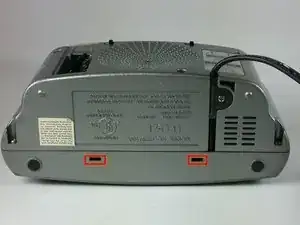

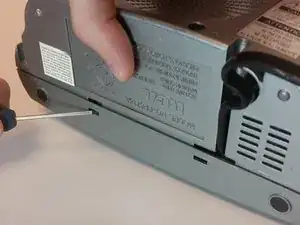

    • Using flathead screwdriver undo the release tabs.

  6. LBGjVybXTyw5wAIk
    LBGjVybXTyw5wAIk
    hEd1qDkF23SIqCYt
    El5xXXtP5XCpCljQ

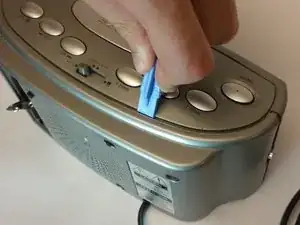

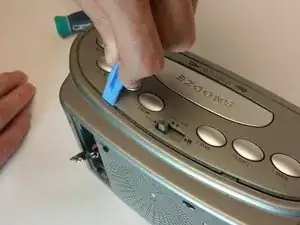

    • Pry the release tabs with a spudger.

    • Start with back of the device on the topside.

  7. AN2tCmEBrhtSTXJO
    AN2tCmEBrhtSTXJO
    JgwcFb2brX3TiGDf

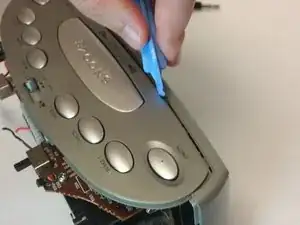

    • Pry open both tabs to remove the topside of the clock.

  8. cHmSsLGnqljTYLVk

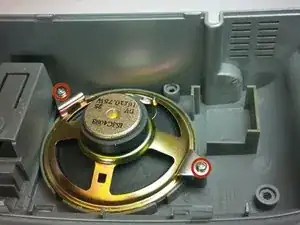

    • Remove the two 10mm Phillip's #1 screws. Also remove the two reinforcements holding the speaker in place.

  9. keX4cMRPfL22OQJG

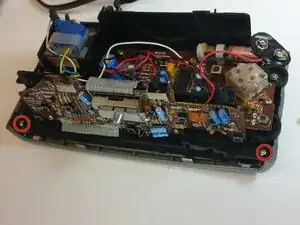

    • Remove the two 10 mm Phillip's #1 screws.

  10. tqsG4QFWPOnp53QN

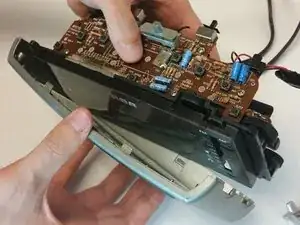

    • Remove the gray panel from the frame.

  11. MvdD5L5rQl1USM2I
    MvdD5L5rQl1USM2I
    jrY3GCKvD1pCCuNy
    vFgiWEnfXraIDxub

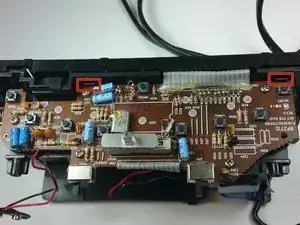

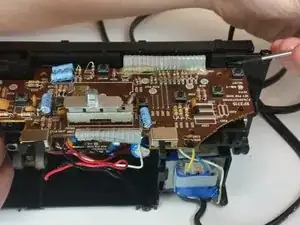

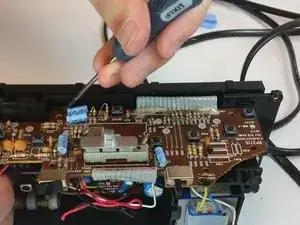

    • The two latches located in the picture will help take off the display.

    • Remove the display.

Abschluss

To reassemble your device, follow these instructions in reverse order.
