RCA RP3715A Motherboard Replacement

Geschrieben von: Alexander Trowell
  • Kommentare: 0
RCA RP3715A Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will explain on how to replace motherboard. Replacing the motherboard is the last resort in order to fix the device.Replacing the motherboard will give you brand new system from the inside. It should fix all known problems expect for a blown speaker or the tuning wheel.

  1. ZijJUuFhEkvXtNkL

    • Take out the six screws located on the back of the device.

    • The red screws are 10 mm Phillip's #1. The orange screws are 13 mm Phillips #1.

    • Three screws are located on the back panel. One is located inside the battery carriage.

    • Two screws are located on the on the back panel on the bottom left and right side.

  2. hwsQyiOJDT6fM55R
    hwsQyiOJDT6fM55R
    nJsxgDgKGpHQwFZk
    l4Ia1a2hm2Ln32xS

    • Remove the 10 mm Phillip's #1 screw.

    • Then remove the metal reinforcement.

  3. A4DDyIfEACjf4vn6
    A4DDyIfEACjf4vn6
    GRIrKZGNJhSEmdgK

    • Using flathead screwdriver undo the release tabs.

  4. LBGjVybXTyw5wAIk
    LBGjVybXTyw5wAIk
    hEd1qDkF23SIqCYt
    El5xXXtP5XCpCljQ

    • Pry the release tabs with a spudger.

    • Start with back of the device on the topside.

  5. AN2tCmEBrhtSTXJO
    AN2tCmEBrhtSTXJO
    JgwcFb2brX3TiGDf

    • Pry open both tabs to remove the topside of the clock.

  6. cHmSsLGnqljTYLVk

    • Remove the two 10mm Phillip's #1 screws. Also remove the two reinforcements holding the speaker in place.

  7. keX4cMRPfL22OQJG

    • Remove the two 10 mm Phillip's #1 screws.

  8. tqsG4QFWPOnp53QN

    • Remove the gray panel from the frame.

  9. MvdD5L5rQl1USM2I
    MvdD5L5rQl1USM2I
    jrY3GCKvD1pCCuNy
    vFgiWEnfXraIDxub

    • The two latches located in the picture will help take off the display.

    • Remove the display.

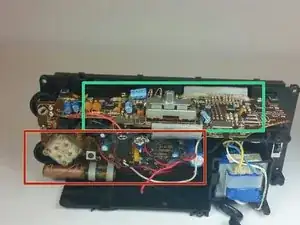

  10. phegIxDeuhsPhUIX
    phegIxDeuhsPhUIX
    oQaKmarafKQPAGxJ

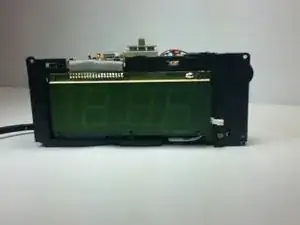

    • asd

  11. MKLSjHGVSNNWoveH

    • Remove the top 5 10mm Phillips #1 screws holding the top part of the motherboard

  12. jWODvj4pvWICl3gB

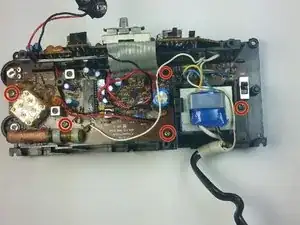

    • Remove the 5 10mm Phillip's #1 screws that holding side part of the motherboard

  13. dhrbcCuMwaZN4QPl

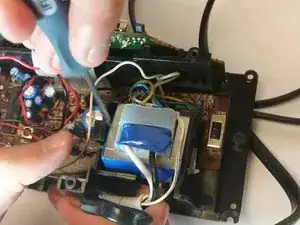

    • Remove the transformer by pulling back the release tab shown.

  14. 6ZSIiiwEPEiL4S4T

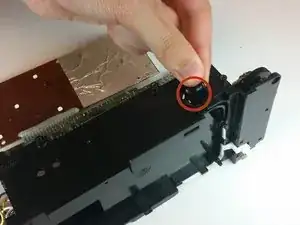

    • Pull the battery terminal through the whole shown.

  15. MsESKwe3ShsVyeTv

    • First release the latch highlighted in the picture. Then grab the screen by the bottom and lift it up.

  16. JiXK1pycOBRtWyIV
    JiXK1pycOBRtWyIV
    uVsZSKBBepDCKVJr
    koYNBs6rfXBhC2lb

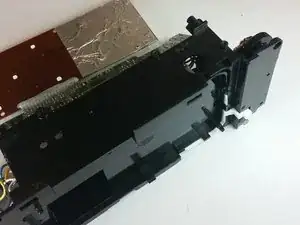

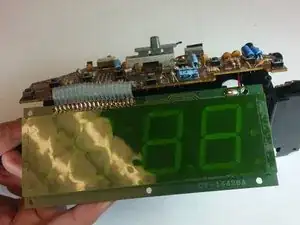

    • Remove the motherboard from the frame using the illustration shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
