Einleitung
In order to replace the viewfinder on your RCA Small Wonders Camcorder CC176, it only takes a small flathead screwdriver, a safe place to keep the screws that you will take out of the camcorder, and a little bit of patience.
Werkzeuge
-
-

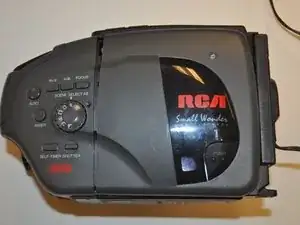

Remove the 5 screws that secure the control panel (located on the top of the device) by using your small flathead screwdriver.
-
Loosen the panel from the device until you are able to remove it.
-
-
-

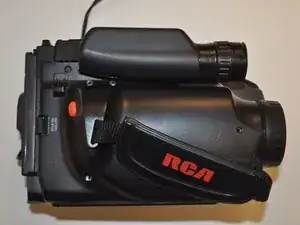

Remove the remaining 21 screws on the camcorder.
-

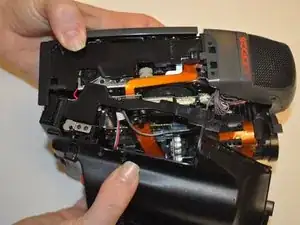

Begin separating the plastic casing from the inner components of the device.
-
-
-

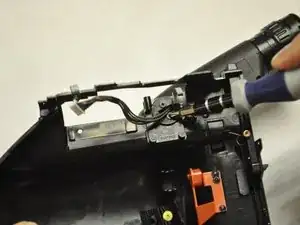

Grasping the viewfinder in hand, carefully remove the two screws that secure the mounting device.
-

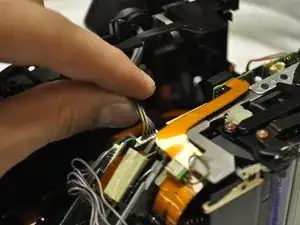

Locate the gray electrical cord that connects the viewfinder to the inner components of the camera. Gently unplug the gray cord and loosen the viewfinder from the device.
-
-
-
Separate the viewfinder from the device and feed the gray cord through the hole in the plastic casing.
-
To reassemble your device, follow these instructions in reverse order.
