RCA ViSYS 25424RE1 Keypad Replacement

Geschrieben von: Munija Ramin
  • Kommentare: 0
RCA ViSYS 25424RE1 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

The RCA ViSYS 25424RE1 phone contains a once piece keypad for dialing phone numbers. This guide can be used to replace the keypad if you're experiencing issues with the buttons. These issues may be caused by using the keypad for a long period of time or by misuse. Using the list of tools and this step-by-step guide, the keypad is easy to replace.

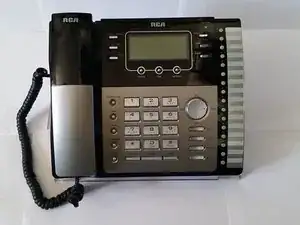

  1. UfEEcemZNQOS2jtr
    UfEEcemZNQOS2jtr

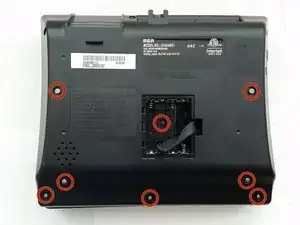

    gNkq1tJE2DuTkcYu

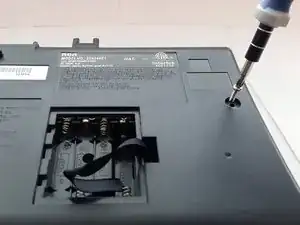

    ZvGbgaItGACcnANI

    • Remove the eight 11mm screws found on the bottom side of the base with a Phillips #00 screwdriver.

  2. 6T41NinEhHciQx1B
    6T41NinEhHciQx1B

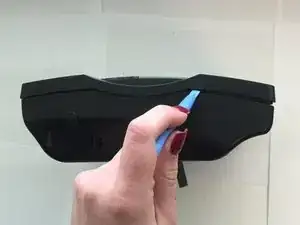

    WfBHqFTKiHOFlxsF
    qpT6bkpkwYfseBke

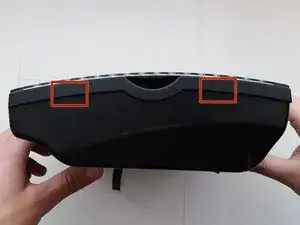

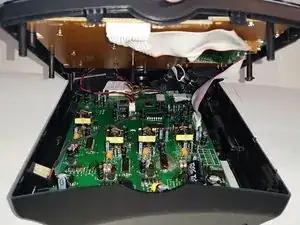

    • Use a plastic opening tool to separate the back and front pieces.

    • Gently remove the back cover, because the wires are connected to each piece.

  3. KNVVVpumnWDjFjmm
    KNVVVpumnWDjFjmm

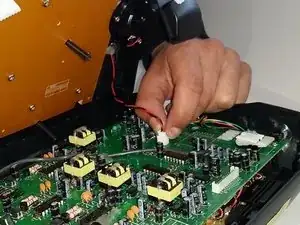

    GcCZgroVUte2t6rT
    lunPAHWSQ2XqFTGf

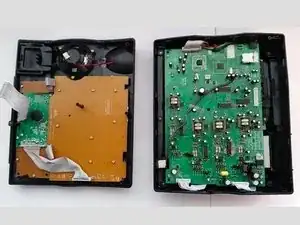

    • Unclip the wires that connect the front piece to the circuit board on the back piece.

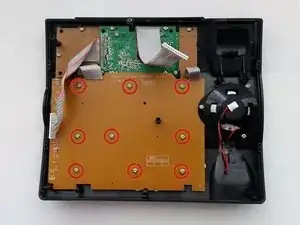

  4. ZJKqvO5tDlTeQGRA
    ZJKqvO5tDlTeQGRA
    OJYyEl2RBQshp14K

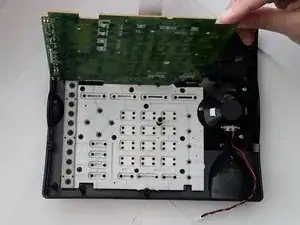

    • Remove the nine 11mm screws from the board using a Phillips #00 screwdriver, in order to expose the keyboard pressure sensors.

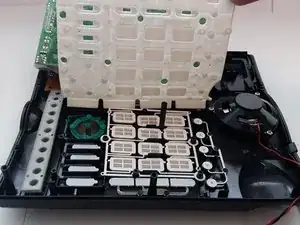

  5. P6J2jl4fenEHBW2y
    P6J2jl4fenEHBW2y
    6LBUsUNsFIhrEJTQ

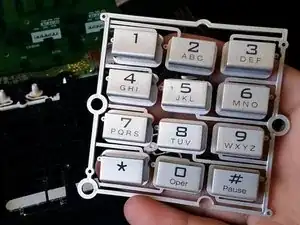

    4p5hfIpDJLfGjwcR

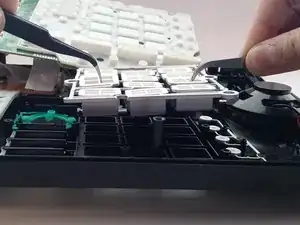

    • Lift the rubber keypad.

    • Use a pair of tweezers to lift the number pad from both ends at the same time.

Abschluss

To reassemble your device, follow these instructions in reverse order.
