RCA ViSYS 25424RE1 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

The internal speaker is used only during speaker phone mode. To access speakerphone mode, the button labeled "speakerphone" must be pressed. The speaker is not used while the speakerphone mode is disabled. If you are unable to hear the incoming sound when using the speaker phone mode, your speaker may be malfunctioning. Use this guide to replace the damaged speaker.

  1. UfEEcemZNQOS2jtr
    UfEEcemZNQOS2jtr
    gNkq1tJE2DuTkcYu
    ZvGbgaItGACcnANI

    • Remove the eight 11mm screws found on the bottom side of the base with a Phillips #00 screwdriver.

  2. 6T41NinEhHciQx1B
    6T41NinEhHciQx1B
    WfBHqFTKiHOFlxsF
    qpT6bkpkwYfseBke

    • Use a plastic opening tool to separate the back and front pieces.

    • Gently remove the back cover, because the wires are connected to each piece.

  3. KNVVVpumnWDjFjmm
    KNVVVpumnWDjFjmm
    GcCZgroVUte2t6rT
    lunPAHWSQ2XqFTGf

    • Unclip the wires that connect the front piece to the circuit board on the back piece.

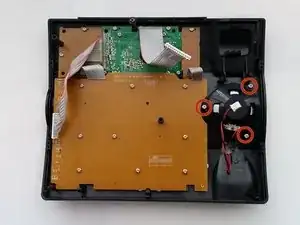

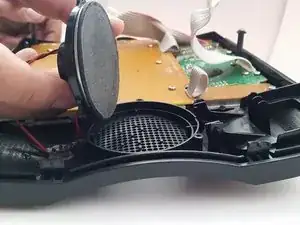

  4. sVGIq4uEOqZnXaDP
    sVGIq4uEOqZnXaDP
    fURfcQvl3Ad5SXOG
    rIsXkclBHWZywGsA

    • Use a Phillips #00 screwdriver to remove the three 11mm screws to separate the speaker from its base.

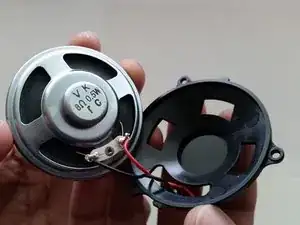

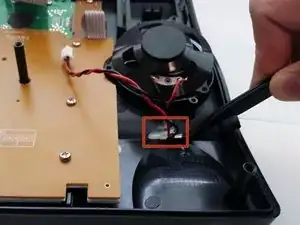

  5. G6KK3EwIGee1CeEO
    G6KK3EwIGee1CeEO
    VbvIUkrgXEQbgnym

    • Once the screws are taken out, use tweezers to remove the hot glue from the wires.

    • Be careful when removing the hot glue to ensure that the wires remain intact.

Abschluss

To reassemble your device, follow these instructions in reverse order.
