RCA Voyager II RCT6773W22 Disassembly

Geschrieben von: Chris
  • Kommentare: 35
RCA Voyager II RCT6773W22 Disassembly

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

10 Minuten

Einleitung

Taking apart the RCA Voyager II is pretty straightforward. Here is a short Guide.

Note that the tablet pictured has been disassembled and reassembled before.

  1. KCmLlX1TDNsU6KSK

    • Have Workstation Prepped

  2. DxUgZbEkeaWcguqd

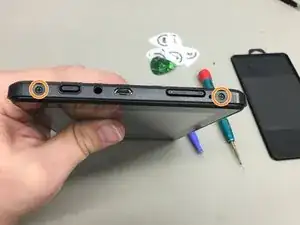

    • remove the two screws on the top of the device with a PH000 screwdriver

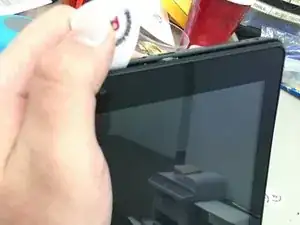

  3. 1VZLklSpPeJIFix6

    • Starting from the top, place pick or plastic tool between the power button and screen edge and push apart slightly.

  4. xnTcGx43IJRHvgBK

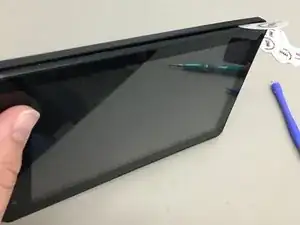

    • Run pick across the top to the right and then down the right side and around the rest of the tablet.

    • There is a good amount of space between the bezel and the board. Be gentle, but the risk of breaking components is low.

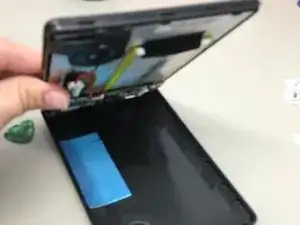

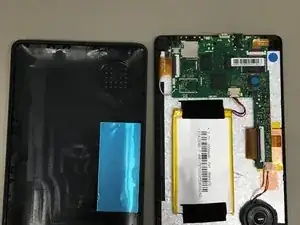

  5. WEZTopWjsNO3AFMS
    WEZTopWjsNO3AFMS
    BKLAixW5uVKNn6bQ

    • lift section out of the black casing from the bottom, lift and remove by pulling away from tablet.

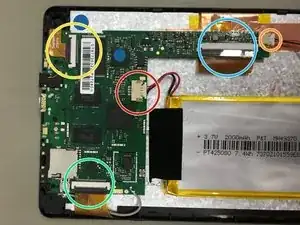

  6. EGrji4UnQTXNZIAq

    • Battery connection (on older models, may be soldered to board)

    • Front Camera

    • Digitizer

    • LCD

    • Speaker

    Where can I buy the LCD piece separately?

    Rica

    MO

    Lamarica Crawford -

  7. 1EoGZNcbsidreoCC

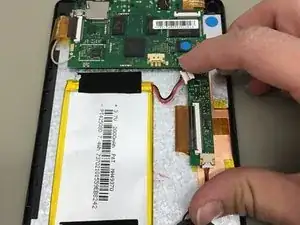

    • Remove battery Connection First

    • Do not use any metal tools while the battery is plugged in. It may cause a short.

    What the name to this part that cover the flex cable I lost the clamp.

    Kiyona Nichole Woods -

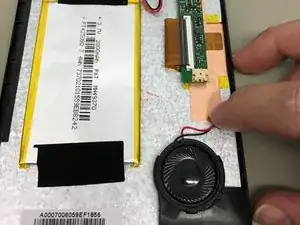

  8. UuieUMBiPWft4SZG

    • unplug the speaker

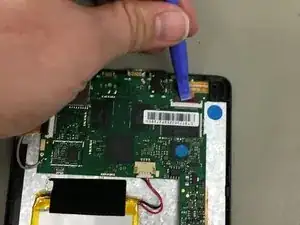

  9. wXxckktOY1MfCAaB
    wXxckktOY1MfCAaB
    nousOPqX1GPHuVcV
    RCYaPqQVoSDiVXhc

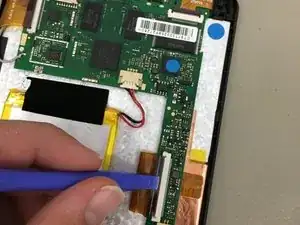

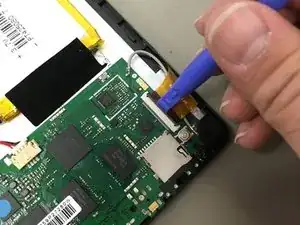

    • Lift the black cover over all three flex cables (Camera, LCD, Digitizer) with a plastic tool.

    • The covers are incredibly fragile, and easy to break

    • gently disconnect all three cables with your fingers by pulling slightly

    Can I get these cable covers because I lost one

    HL Devices -

  10. jlyPxFLfcv6vPJDI

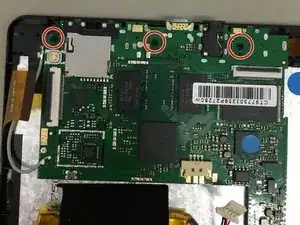

    • remove the three screws securing the board with your PH000 Screwdriver

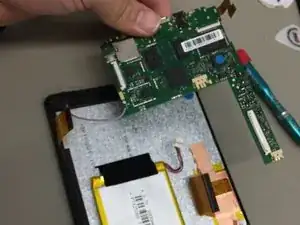

  11. AkLPCEawMEXyfvLx
    AkLPCEawMEXyfvLx
    RorVVlHxpL5NVCQ4

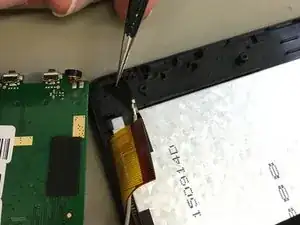

    • lift the board out gently

    • Do not tug the board out too hard, the antenna cable on the left is soldered in!

    • Fold board over the left side of the tablet and gently remove tape securing antenna to the case. Use a small amount of heat if necessary.

  12. U6cnxbhOv6Crivuk
    U6cnxbhOv6Crivuk
    cBemln6rXsmwhiMI

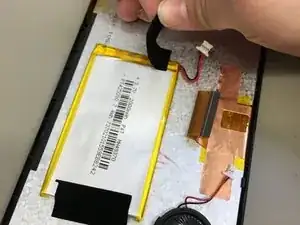

    • remove tape from top and bottom of the battery.

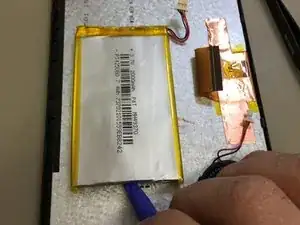

    • with a plastic piece, lift battery from adhesive securing it in place.

    • do not use a metal or sharp tool to remove the battery, tearing or puncturing it may cause it to explode or heat rapidly, and may damage your device.

    • The battery is secured directly to the back of the LCD. Exercise caution while removing the battery not to damage the LCD.

    • The battery is soft and somewhat malleable - it can bend slightly without damage.

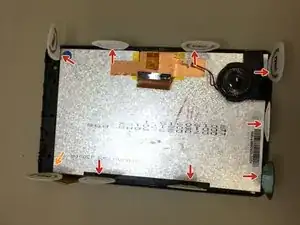

  13. AXMmOatxlR6F5jqf
    AXMmOatxlR6F5jqf
    FDawXdKetF3SPccb

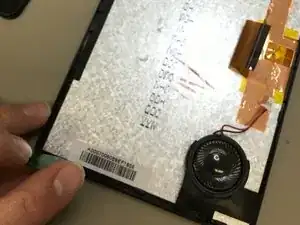

    • Place picks between the lcd and the plastic clips holding it in place.

    • The pick placement to the top left side (near the power button) is smaller and on a corner. I recommend inserting this pick last.

  14. VwhOnFPcYMVaonFM

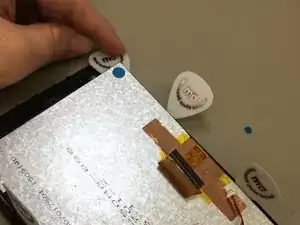

    • Gently push top right pick down to lift LCD from the clip. Run across the top and right side to further lift LCD.

    • Use picks as needed to separate LCD in other areas.

  15. ptgTulCQsWKIq32x

    • Once separated and loose, remove picks so you do not damage the LCD while removing it.

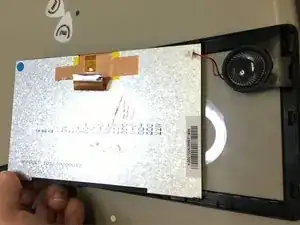

    • To remove, lift top of LCD and pull out of case away from the speaker, which is fixed to the digitizer frame.

    Power on both

    lawal Azeez -

  16. 2GS5oGIyKPQ4l3In
    2GS5oGIyKPQ4l3In
    QBSJBtPA6gEQvUsC

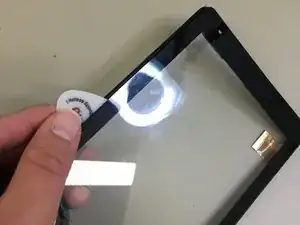

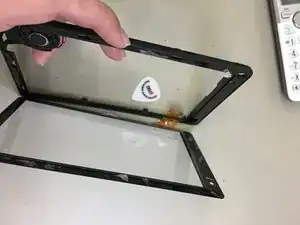

    • to remove Digitizer/Glass from the frame and speaker, slide a pick under a corner between the glass and frame to loosen adhesive

    • If you're having issues loosening the adhesive, use a heat gun around the edges, then try again.

  17. RRtV1S3BcAVB3VZf

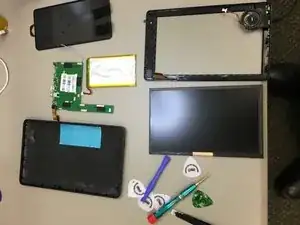

    • You have completely dismantled the RCA Voyager II

Abschluss

To reassemble your device, follow these instructions in reverse order.
