RIDGID Belt Sander R2740 On/Off Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

If your RIDGID R2740 Belt Sander won't turn on, the on/off switch may be defective and need to be replaced. This guide will walk you through how to replace the on/off switch on your RIDGID R2740 Belt Sander.

  1. WhgWvsbD1OP2IF6i
    WhgWvsbD1OP2IF6i
    MsqiB2jrMF3qjQHP

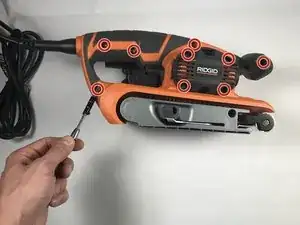

    • Orient the belt sander so that the RIDGID logo is facing you.

    • Remove the six 19 mm and three 51 mm T20 screws that hold the cover into place.

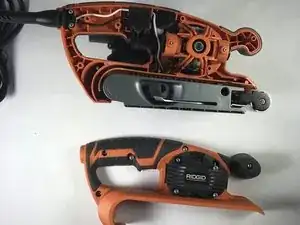

    • Remove the cover from the belt sander.

    • Make sure you remember the correct placement of each screw.

  2. nCkJrVeSG3HuMYcj
    nCkJrVeSG3HuMYcj
    vfhQPcLmsWOXsm3R

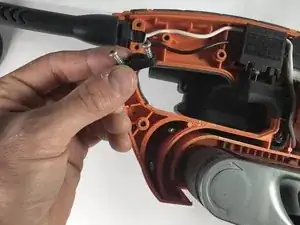

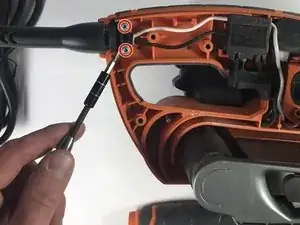

    • Remove the two 16 mm T10 screws.

    • Remove the support bracket that holds the power cord into place.

  3. hElgEIDBHpABDxvb
    hElgEIDBHpABDxvb
    pnabIJAFCA2233m6
    2I3JP2wMyYyemhBB

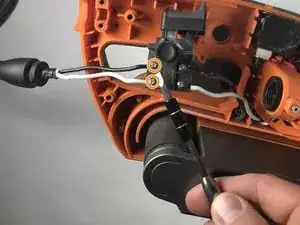

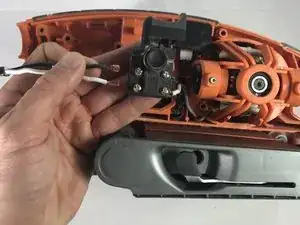

    • Lift the power cord from the resting grooves.

    • Rotate the switch so that the lock-on button is facing you.

    • Loosen the two 8 mm Phillips #3 screws.

    • Pull the two wires away from the switch.

  4. wTOnBefqGahUWbJd

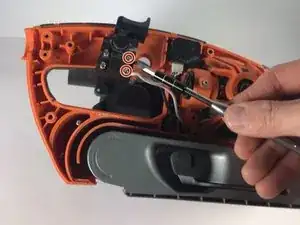

    • Undo the two screws on the backside of the switch with a Phillips #3 screw driver.

  5. JPcFIIOmfvwHTYlD

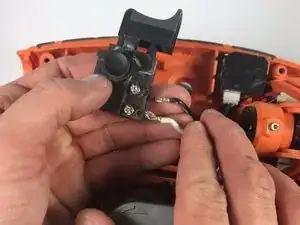

    • Pull out the wires from the switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
