RIDGID R2740 Ball Bearing Replacement

Geschrieben von: Cameron Smith
  • Kommentare: 0
RIDGID R2740 Ball Bearing Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 - 30 Minuten

Einleitung

If your RIDGID Belt Sander R2740 is making abnormal sounds the cause could be from a worn or damaged ball bearing. This guide will teach you how to replace the ball bearing. For this guide, you will need a screwdriver with a T20 head and a hammer.

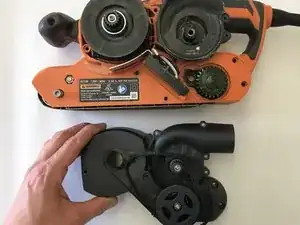

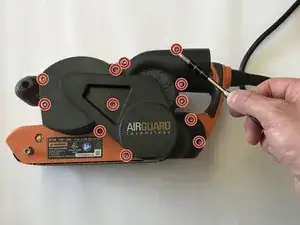

  1. LRObtCACbAWGGl45
    LRObtCACbAWGGl45
    WFJ5fTXrEIUU3xxC

    • Orient the belt sander so that the AirGuard Technology logo is facing you.

    • Remove the nine 19mm, two 51mm and one 32 mm screws that hold the cover into place.

    • Remove the cover from the belt sander.

    • Make sure you remember the correct placement of each screw.

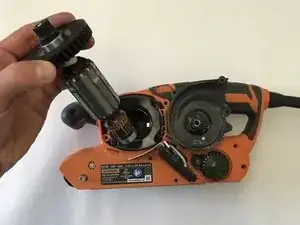

  2. FvLaFXTqStaRYgVH

    • Remove the assembly armature from the belt sander.

    • You may need to wiggle the assembly armature to remove it from the belt sander.

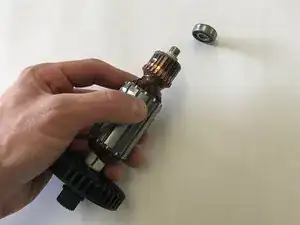

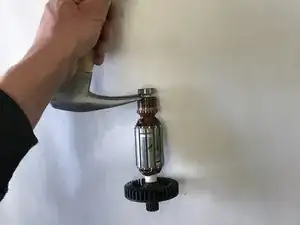

  3. CDJhADiK3FP1KERX
    CDJhADiK3FP1KERX
    mJmHCFjsfeK6WPIT

    • Use a hammer to pry the ball bearing from the assembly armature.

    • The ball bearing can be somewhat difficult to remove. You may need to apply WD-40 before removal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
