RIDGID R84015 X2 Planetary Gear Replacement Guide

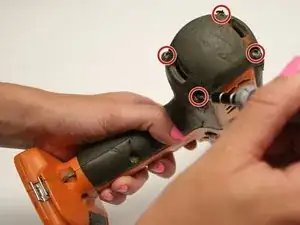

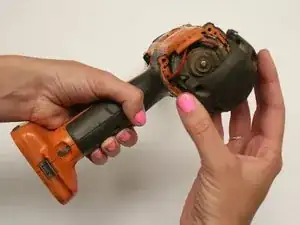

Remove the backplate.

Using a Torx T20 screwdriver, remove the four screws attaching the back plate.

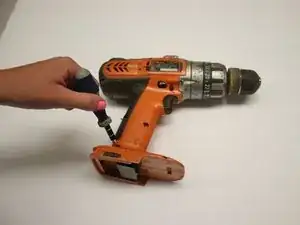

Remove the drill handle.

Using the Phillips #2 screwdriver, remove the five screws attaching the drill handle to the body.

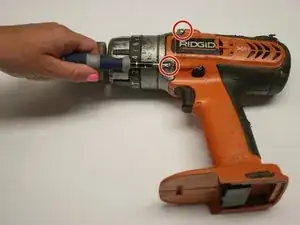

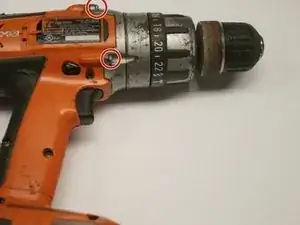

Remove the gear casing from the body.

Using the Philips #2 screwdriver, remove the four screws attaching the gear casing to the body.

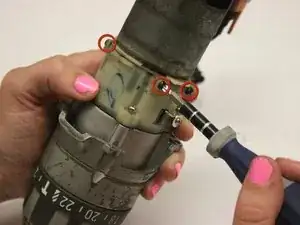

Prepare to remove the gear chamber.

Using the Phillips #2 screwdriver, unscrew the four screws at the rear of the plastic gear chamber.

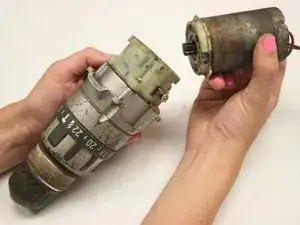

Remove the motor from the drill by gently pulling the motor away from the gear chamber.

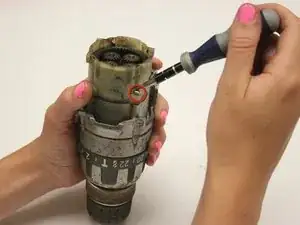

Remove the plastic gear chamber.

Using the Phillips #2 screwdriver, remove the four screws that attach the plastic gear chamber.

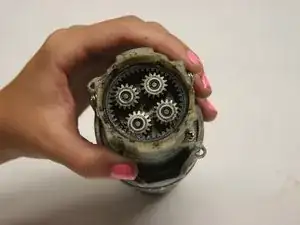

Remove each component from the gear assembly. Replace components as needed.

Reassemble the drill following the gear replacement instructions in reverse order.
