RIDGID R84015 X2 Wiring Repair

Geschrieben von: Evan Long
  • Kommentare: 1
RIDGID R84015 X2 Wiring Repair

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

Use for a diagnosed wiring problem.

  1. OFqMFSqpjv1PyCaS
    OFqMFSqpjv1PyCaS
    sTyOyJHGPCEyNQKo

    • Remove the backplate.

    • Using a Torx T20 screwdriver, remove the four screws attaching the back plate.

  2. ioJe5mDDaNvMqndv

    • Remove the drill handle.

    • Using the Phillips #2 screwdriver, remove the five screws attaching the drill handle to the body.

  3. 4MpNRmDHkLhhuekM
    4MpNRmDHkLhhuekM
    aAQ2pnRwJPmHO2AT

    • Remove the gear casing from the body.

    • Using the Philips #2 screwdriver, remove the four screws attaching the gear casing to the body.

  4. fpNWc4WNtQrBsTT4

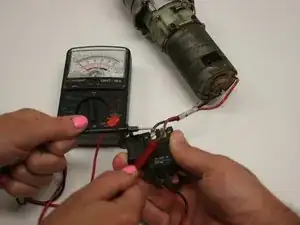

    • Use a multimeter set above 18V DC to check electrical connections where wires meet drill, switch, or battery terminal.

  5. 4XUdiCAxngnvjQF1

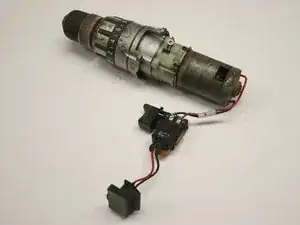

    • Look for corrosion or burnt wires.

    • If there are any bad connections or if there is visible damage, replace damaged wire and solder.

    • After soldering sand off jaged solder then wrap with electrical tape

    Tin the broken wires with Rosen core solder and do not overuse the solder. Heat one side pretinned wire and place the other pretinned wire on that till the solder melts together. Remove iron and cool and you should have a quality repair. Don’t forget to add heat shrink before doing the connection.

    brennanmichael -

Abschluss

To reassemble your device, follow these instructions in reverse order.
