RIDGID R860052 Switch Assembly Replacement

Geschrieben von: Anna Wu
  • Kommentare: 1
RIDGID R860052 Switch Assembly Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

30 - 40 Minuten

Einleitung

If the drill does not turn on after pressing the trigger or it does not stop turning even after you release the trigger, the switch assembly might be damaged. This guide will provide guidance to the process of replacing a broken switch assembly in a RIDGID R860052.

  1. hTWJypnXJBrhUJNW
    hTWJypnXJBrhUJNW
    dHXelRkJQOpurVcA

    • Remove the battery from the drill before you begin.

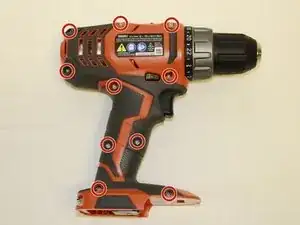

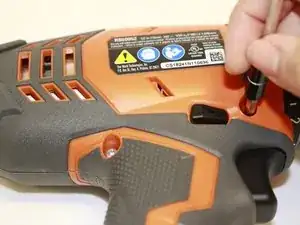

    • Use a T10 Torx screwdriver to unscrew the ten screws on the information label side of the drill.

    • These ten screws are 19 mm long.

  2. CbBsZnaUGOd5RaFS

    • Lift off and remove the cover with the informational label.

  3. RidFnSQy3IlsbhDi
    RidFnSQy3IlsbhDi
    ZXQGELIK2vkObmOt
    YTGtV1MOrLiLdD1A

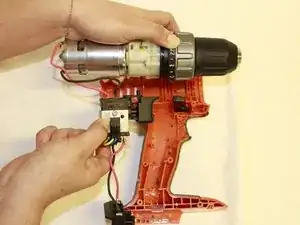

    • Remove the switch assembly, chuck, and motor from all drill covers.

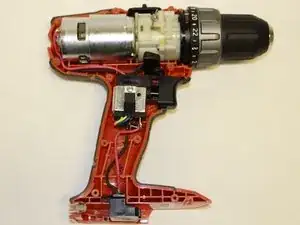

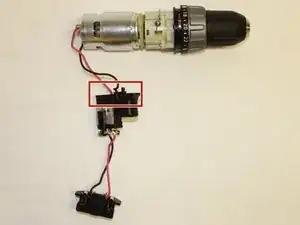

    • Check if all wires are connected to the switch assembly and motor as illustrated in the image.

  4. DcEBVDMbOe22eGna
    DcEBVDMbOe22eGna
    k3sOtv1WjVK4p1TT

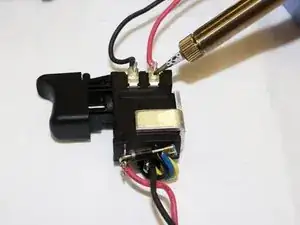

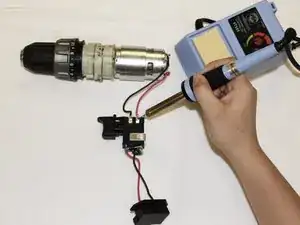

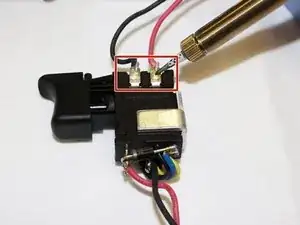

    • To replace the switch assembly, desolder the black and red wires and replace with a new switch assembly.

    • Be aware of the heat level of the metal part on the soldering tool.

    Your warning is a little unclear as to what we should be careful of touching.

    Nicholos Frey -

Abschluss

To reassemble your device, follow these instructions in reverse order.
