ROG Strix G15 G512LI Disassembly

Geschrieben von: June
  • Kommentare: 3
ROG Strix G15 G512LI Disassembly

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 - 10 Minuten

Einleitung

  1. xB3H4fLJQKL2sKwk

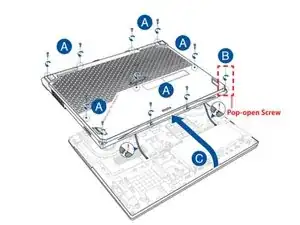

    • Remove the screws from the compartment cover, As show in the diagram, unscrew the screws labeled "A" first. before unscrewing "B", Don't remove screw "B" from the cover.

  2. YFGQrmdOx4us3R22

    • Remove the panel, but be careful as there are 2 cables linking the RGB light bar to the motherboard, carefully and gently detach them from the motherboard and lift the panel.

    How do you remove the panel!? It looks like it will break. (Honestly have no idea why there are clips securing the bottom on this. They have ELEVEN screws in it! It ain't gonna move, not even for a 200lb gorilla like me lol

    Nicholas Royer -

    Nevermind. Got it open, but was scared of breaking something.

    The side vents (intakes or exhaust, not sure) have two clips each, so you need the little blue triangles to wedge in there and pop them loose.

    Nicholas Royer -

Abschluss

To reassemble your device, follow these instructions in reverse order.
