ROG Strix G15 G512LI M.2 SSD Replacement

Geschrieben von: June
  • Kommentare: 3
ROG Strix G15 G512LI M.2 SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. xB3H4fLJQKL2sKwk

    • Remove the screws from the compartment cover, As show in the diagram, unscrew the screws labeled "A" first. before unscrewing "B", Don't remove screw "B" from the cover.

  2. YFGQrmdOx4us3R22

    • Remove the panel, but be careful as there are 2 cables linking the RGB light bar to the motherboard, carefully and gently detach them from the motherboard and lift the panel.

    How do you remove the panel!? It looks like it will break. (Honestly have no idea why there are clips securing the bottom on this. They have ELEVEN screws in it! It ain't gonna move, not even for a 200lb gorilla like me lol

    Nicholas Royer -

    Nevermind. Got it open, but was scared of breaking something.

    The side vents (intakes or exhaust, not sure) have two clips each, so you need the little blue triangles to wedge in there and pop them loose.

    Nicholas Royer -

  3. 3DiWD3gKGFbG4iNI
    3DiWD3gKGFbG4iNI
    h2EVJQMr3I1JgBod

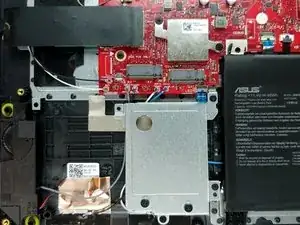

    • Locate the M.2 SSD slots, the First and Third slots both support SATA and PCIe NVMe M.2 SSDs, and the second M.2 Slot only supports PCIe NVMe SSDs

    • Next, Insert the NVMe SSD, and screw the SSD into place with the retaining screws

Abschluss

To reassemble your device, follow these instructions in reverse order.
