RYOBI AG454 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

22

Zeitaufwand

1 Stunde

Einleitung

If your RYOBI AG454 is not working or turning on, your motor could be damaged. If the device is sputtering or smoke this could be a sign of motor damage. This guide explains how to detect issues in the motor. It will go through the process of how to understand that the issue is coming from the motor. It will then go through the process of taking apart the grinder so they can reach the motor. After this process, it will give the user helpful steps on how to see if the issue is fixable or not.


  1. nTUoZYIWbPmLadJv

    • Lay the handle on it's side, with the screws facing up.

  2. R6mK1nAOKTFYFS3s

    • Remove the five 14mm screws from the rotating handle using the Phillips #1 screwdriver.

  3. q2wTfXdCRrX6WNFh

    • Take the top part of the handle off.

  4. ltpmxG1ZHKnPc4GO

    • Unscrew the two 14mm screws from the clear bracket using the Phillips #1 screwdriver.

    • Remove the bracket.

  5. V1bVWMKwoGCjRIDU
    V1bVWMKwoGCjRIDU
    keHjX6VFSevrx6ut

    • Push handle rotation latch and seperate the rest of the handle from main body.

  6. BLEvBbjmhyJQBjBT

    • Remove the brush caps from each side of the body using the 4 mm flat head screwdriver.

  7. eCBxVZiJpPcHH1nP

    • Remove the carbon brushes.

  8. RYB2rf3LVyXmrIWa
    RYB2rf3LVyXmrIWa
    Bro2NpKynOKwcTFN

    • Remove the two carbon brushes from both sides of the device.

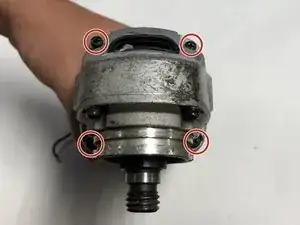

  9. iBuVAGrePk14WOuN

    • Remove the four 20mm screws that secures the gear box using a Phillips #1 screwdriver.

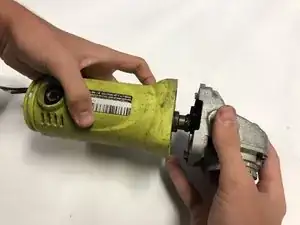

  10. wdHV24sGpFqtlhQA

    • Seperate the gear box case from body.

  11. HsfwnAFBPRPabFpU

    • Pull out drive shaft and remove it from the device.

  12. 2ZlblmWGHXrDPSAM
    2ZlblmWGHXrDPSAM
    HMgMvPvNCSrMwIgy

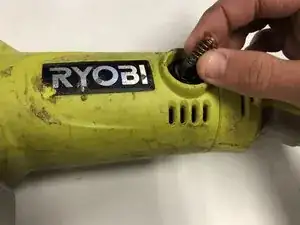

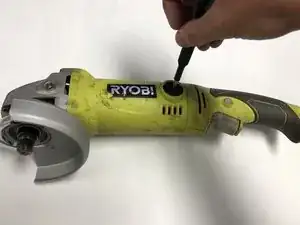

    • Remove the carbon brushes on both sides of the grinder.

  13. uqZ2MjjQ4bQcyr5w

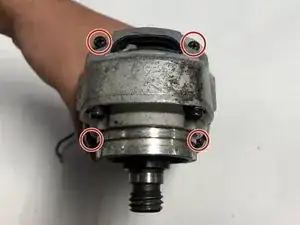

    • Remove the four 20mm screws securing gear box case using a Phillips #1 screwdriver.

  14. atMHhOb2nObFJDK3

    • Seperate gear box case from body.

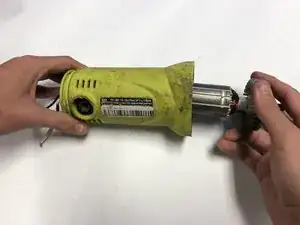

  15. 3V5iopTf5ZCIeJkn

    • Pull drive shaft from body of device.

  16. mUlPAQ2f3IECD2iT

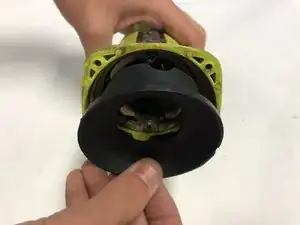

    • After removing the drive shaft pull out the cap.

  17. VNAvglBcykgAom1C

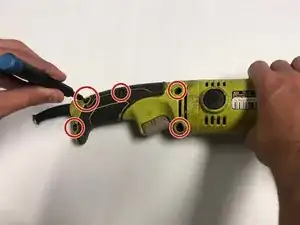

    • To remove the handle, remove the five screws using a Phillips #1 screwdriver.

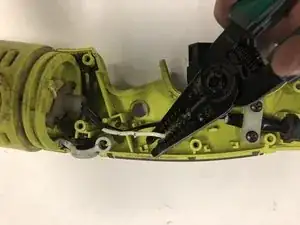

  18. UGiprXnbYWhou3ZH

    • Cut the white wire that's located below the trigger in rear rotator handle with wire strippers.

    • When reassembling the handle twist the ends of the two wires together and crimp them.

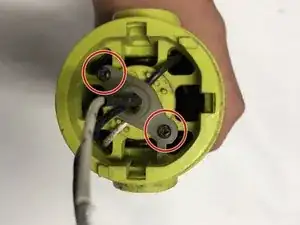

  19. lWfShZXf662LQmST
    lWfShZXf662LQmST

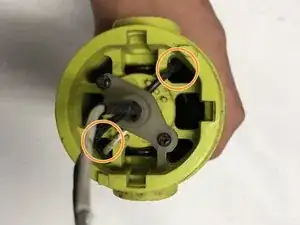

    ByIZdunXTQMVAyoj

    • Using a Phillips #1 screwdriver, remove the two screws from the bracket on the bottom of the body.

    • Remove the bracket from the device.

    • When reassembling be sure to pull the wires back through these two holes.

  20. AceAVryKb5BvJURf

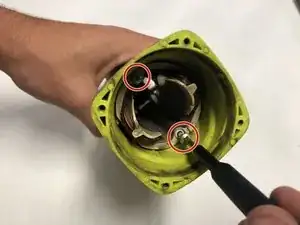

    • Remove two screws from the motor using the Phillips #1 screwdriver.

  21. bOcRV1XVSbpysnTg

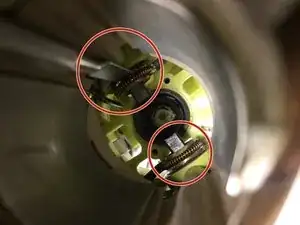

    • From the bottom of the body, slide the two coils off the brushes with a Jimmy.

    • When putting the coils back in place, use the Jimmy on top of the coils and push down the roll around the edges to push the coil down.

    • Another way of putting the coils back on is to push the Jimmy on top of coil and use another Jimmy to push down the back of the coil.

    • Putting on the coils may take multiple attempts so do not get frustrated if you can't get it on first try.

  22. lF2ErSMocSSJLbEN

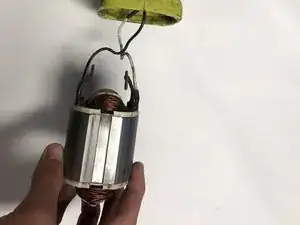

    • Carefully pull motor along with wires straight out from the body and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
