RYOBI AG454 Rotator Handle Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

When your handle starts to have malfunctions fix them soon as possible for the best performance of the device. This device guide will go over a couple of problems we found with the handle. For instance, if you’re noticing that your handle is moving while you’re performing a task, this guide will help you fix that.


  1. nTUoZYIWbPmLadJv

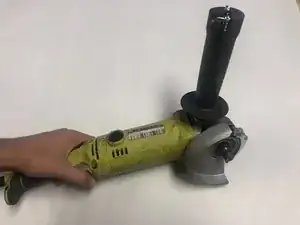

    • Lay the handle on it's side, with the screws facing up.

  2. R6mK1nAOKTFYFS3s

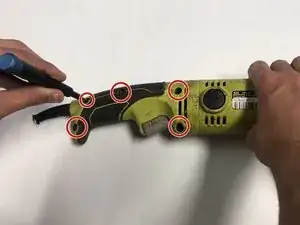

    • Remove the five 14mm screws from the rotating handle using the Phillips #1 screwdriver.

  3. q2wTfXdCRrX6WNFh

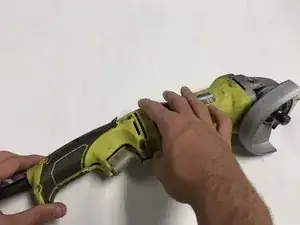

    • Take the top part of the handle off.

  4. ltpmxG1ZHKnPc4GO

    • Unscrew the two 14mm screws from the clear bracket using the Phillips #1 screwdriver.

    • Remove the bracket.

  5. V1bVWMKwoGCjRIDU
    V1bVWMKwoGCjRIDU
    keHjX6VFSevrx6ut

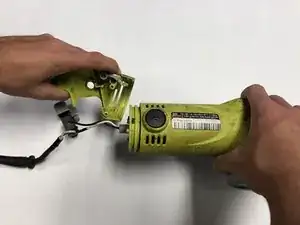

    • Push handle rotation latch and seperate the rest of the handle from main body.

Abschluss

To reassemble your device, follow these instructions in reverse order.
