Einleitung
This guide demonstrates how to remove and replace a rear rack from the Raleigh M20 bicycle. This requires the removal of the old rear rack before replacing the new rear rack.
Werkzeuge
Ersatzteile
-
-
Make sure that the bike is upright and stable.
-

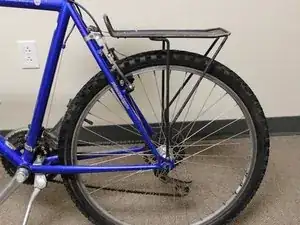

Make sure that the rear rack is fitted on the bike.
-
-
-

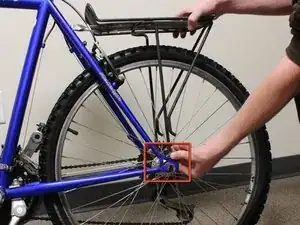

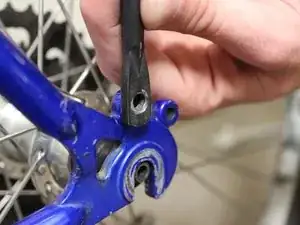

Place a screw to attach the rear rack to the frame of the tire.
-

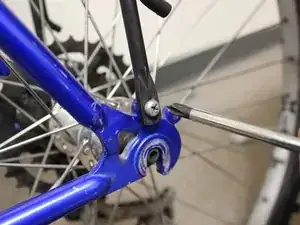

Tighten the screw with a philips screwdriver by turning it in a clockwise direction.
-
Repeat the steps above on the other side of the bike.
-
-
-

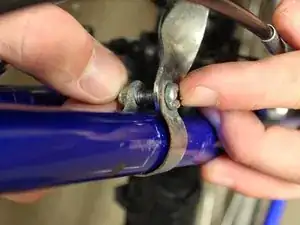

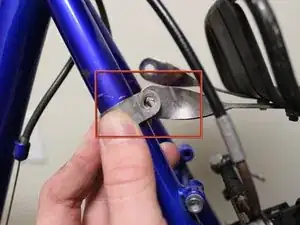

Place the metal holder to be even with the bar sticking out of the rear rack.
-

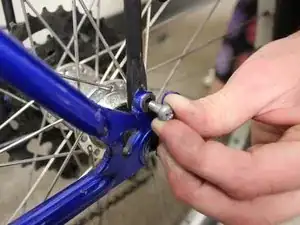

Line up the holes. Place a bolt to attach them together.
-

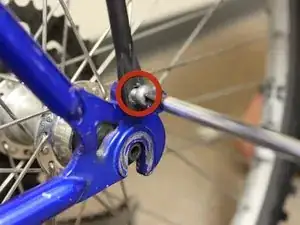

Use a philips screwdriver to tighten the bolts.
-
Do this for both sides.
-
-
-
Make sure that the rear rack is even. If it is not, redo the previous step.
-

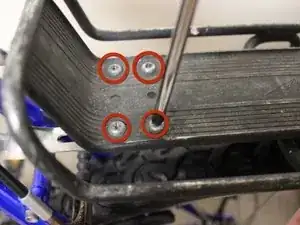

Locate the screws on top of the rear rack. Tighten the screws using a philips screwdriver.
-
Once the screws are tightened, you are done.
-
To detach the rear rack, follow the instructions of this guide in the reverse order.
