Raleigh M20 Chain Guard Replacement

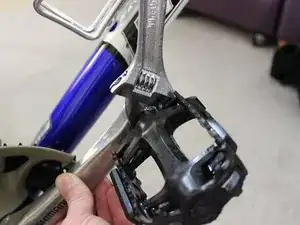

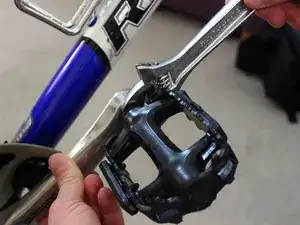

Use an 8" adjustable crescent wrench to fit it into the base of the pedal.

Twist the the wrench in a counter -clockwise direction to unscrew the right-side pedal (The chain side).

Repeat the process on the other side with a clockwise direction.

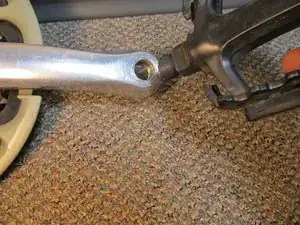

Turn the wrench continuously until the pedal detaches from the crank arm.

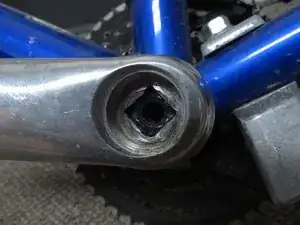

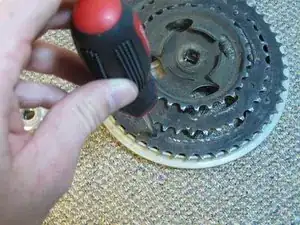

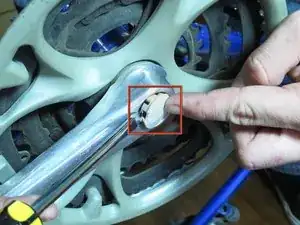

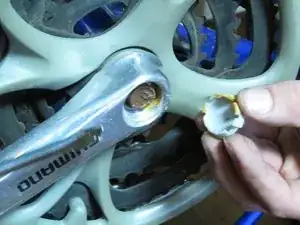

Use a flathead screwdriver to remove the dust cap of the crank arm.

Repeat the process on other side.

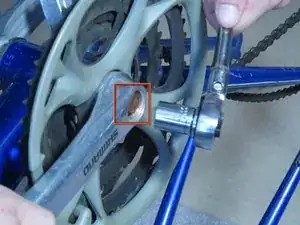

Next, use a socket wrench to unscrew the crank arm.

Turn the socket wrench clockwise to remove the bolt.

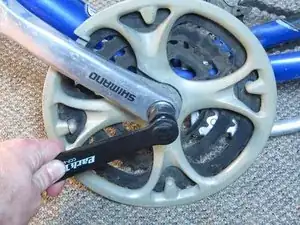

Insert the crank arm puller into the screw hole.

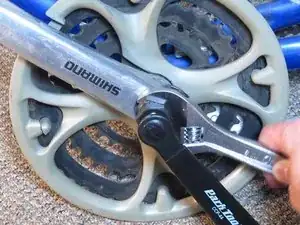

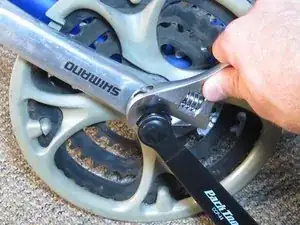

Now use a crescent wrench to tighten the crank arm puller. Twist it in a clockwise direction until the puller is fully tightened.

Turn the crank arm puller in a clockwise direction to remove it.

Repeat step 2 to 4 on the other side.

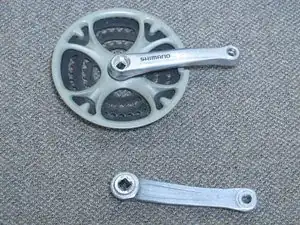

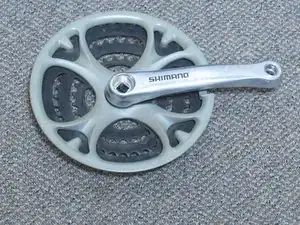

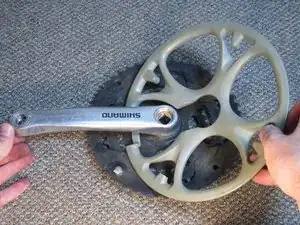

Flip the crank arm over with the chainring on it.

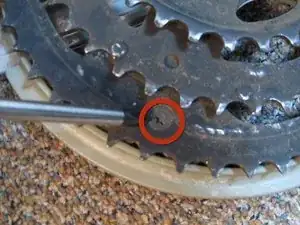

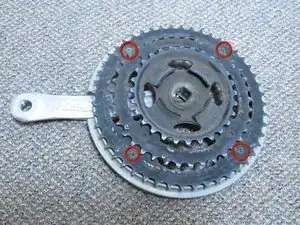

Locate the four screws on the back of the chainring.

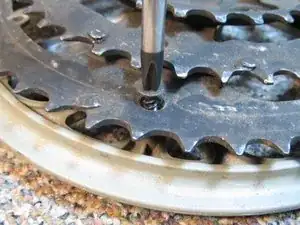

Use a Phillips #2 screwdriver to remove the four screws on the back of the chainring.

Flip the chain guard over.

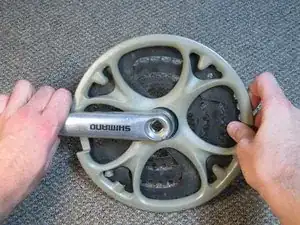

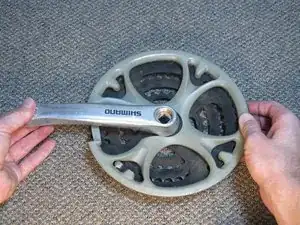

Hold on to the crank arm and pull out the chain guard gently.
