Raleigh M20 Handlebars Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

30 - 45 Minuten

Einleitung

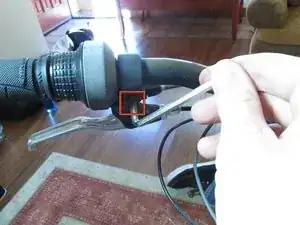

  1. D3USE1x2HwAmFWdY
    D3USE1x2HwAmFWdY

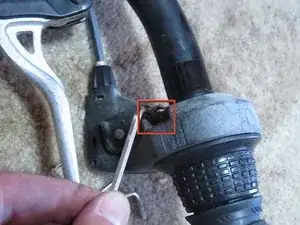

    Byo1OVmQpONWsQA2

    • Strip all the accessories from your old handlebars. (reflectors, mirrors, etc...)

    • Using a 3/8" Allen wrench, loosen the nuts that hold the brake controls and gear shifters.

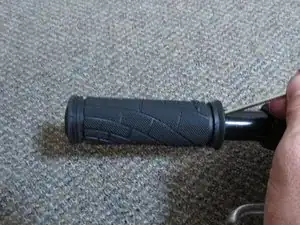

  2. YI3pOebFFTigpMCw
    YI3pOebFFTigpMCw

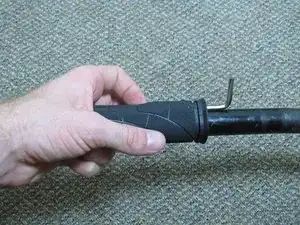

    cJ11QKlkaYnch6SQ

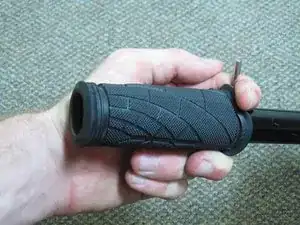

    YqLXNS65qRAeHAaF

    • Place an Allen wrench (size doesn't matter) under the bike grip.

    • Twist the grip back and forth while pulling on the Allen wrench to remove the grip.

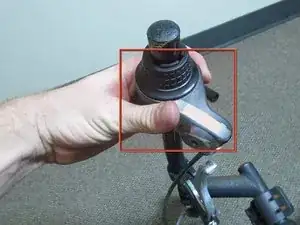

  3. mJOdTdLi54eaWydN
    mJOdTdLi54eaWydN

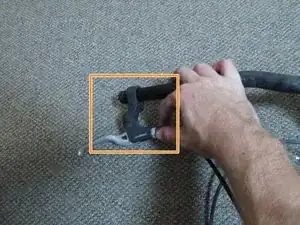

    lI5KUUxoiqDlseTw

    • Slide off the gear shifters.

    • Slide off the brake controls.

  4. 2alAFlQZcl1QEwmX
    2alAFlQZcl1QEwmX
    2eQs4iEtlHxPHCNT

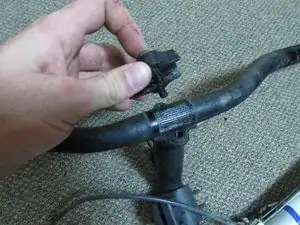

    PevWoGLVHmXNuUex

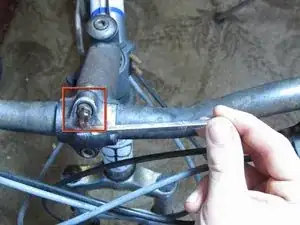

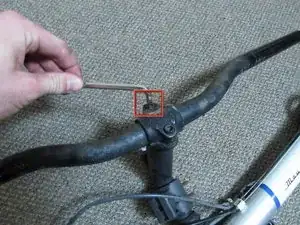

    • Loosen the central nut on the faceplate that connects the bars to the steering column. If the bars are secured by a faceplate with a detachable top, loosen the nuts on the faceplate and remove.

    • Lift the handlebars from the bike frame.

    • Move the bars until they're in the correct position for your stance. Tighten the faceplate nuts with a 3/8" Allen wrench to firmly secure the handlebars in place.

    • Sit on the bike and make final adjustments to the positioning of the brakes and gears.

Abschluss

To reinstall the handlebars, complete these steps in reverse order. If there is a problem with the alignment, return to the handlebar repair guide and repeat step 4.
