Raleigh M20 Seat Cushion Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will give a step by step walkthrough of how to replace an old seat cushion with a new one.

  1. oObrq6TTJDaZIB2L
    oObrq6TTJDaZIB2L
    CBiVwRDexVonGbHV
    TUxI266GrP4i41BQ

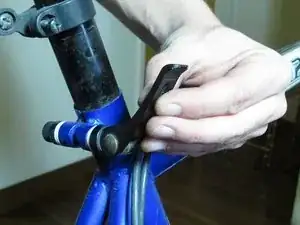

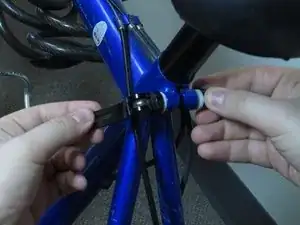

    • Loosen the seat clamp by pulling the black lever away from the frame. Once this is done, simply rotate the lever counter-clockwise to loosen the seat.

    • Stand on the right side of the bike while loosening the lever and make sure the bike isn't upside-down. This will prevent the seat from falling off during this process.

  2. aRFeFlMcSf1QmXGj
    aRFeFlMcSf1QmXGj
    eQGwCfR6LAn5YAU1

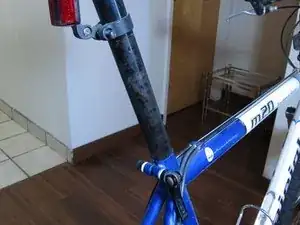

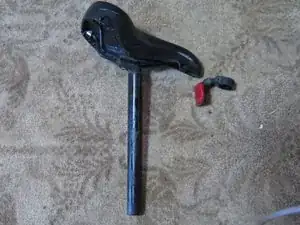

    • Now that the seat is loosened, slowly pull up on the seat cushion until it is fully out of the frame. Next, place the seat on the ground.

  3. wAEYT3WKoZKVhiuJ
    wAEYT3WKoZKVhiuJ
    L5KRDwOKWEhHoqhk

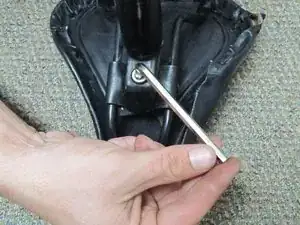

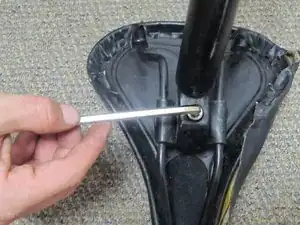

    • Use an Allen wrench to unscrew the bolt that is holding the post to the seat cushion.

  4. HpXXOBItfNV31Hut
    HpXXOBItfNV31Hut
    ItuiPcnJpIpFpIeB
    xTi25K5GW1ZP6pb3

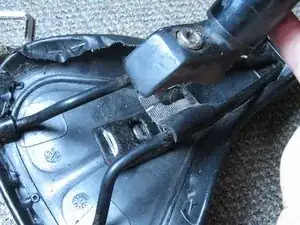

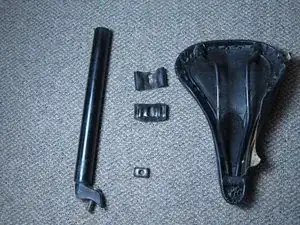

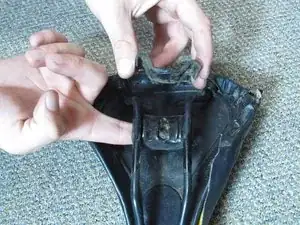

    • Now that the bolt is loosened, carefully pull the seat cushion from the post. Next remove the two riders as shown in the second image.

Abschluss

Now you are ready to reassemble the seat with your new cushion. Just follow these same steps in the reverse order. Thanks for taking the time to use this guide!
