Raspberry Pi 3 SD Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

35 Sekunden - 5 Minuten

Einleitung

In this guide I will show you how to change SD card in your Raspberry Pi 3.

Werkzeuge

Ersatzteile

  1. pw3dJUodrLwYBVlc

    • The Raspberry Pi 3 should look like this closed.

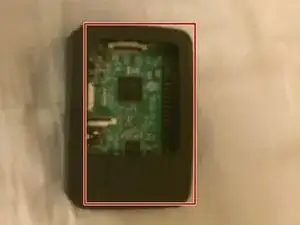

  2. mGpBNURHiEfdrmDy

    • Open the top lid like I have done on the image.

    • The top is marked that you are gonna remove in the next step.

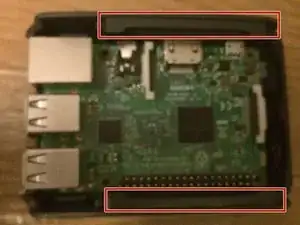

  3. OwRCkrVGgCPLcFOG

    • Now remove the cover for the two covers.

    • It should look like the image.

    • I have marked the covers for the next step.

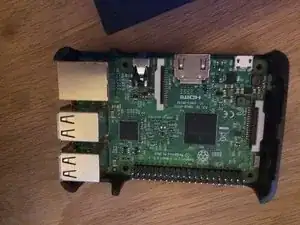

  4. WYjHYsst5Sy2jTos

    • Remove the two sides.

    • It should look like the image.

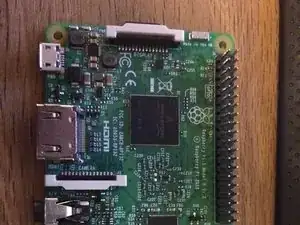

  5. LUmYOClVCNpGJXdA
    LUmYOClVCNpGJXdA
    V5GkCnFhFdoGx1Jq

    • Now we should successfully have removed the case.

    • Notice that the side shown on the first image is the one that we are intrested in.

    • When we have flipped the Pi 3 over we can remove the SD card.

    if you follow this you may brake the sd card of the raspberry pi here is a updated guide

    step 1 flip the raspberry pi over

    step 2 remove the sd card

    step 3 put new sd card in

    step 4 flip the raspberry pi back over

    done

    Kieran jones -

Abschluss

To reassemble your device, follow these instructions in reverse order.
