Razer Blade 15 Keyboard Replacement

Geschrieben von: Ved Pitre
  • Kommentare: 4
Razer Blade 15 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 30 Minuten

Einleitung

Ersatzteile

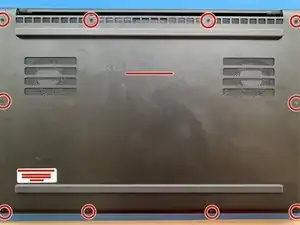

  1. nRxLboe1KQQYFJyC

    • Flip over to the back side of the laptop

    • Remove the 10 screws at the bottom of the Razer using a T5 screwdriver head

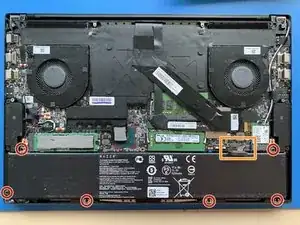

  2. pquu6DMMjHpe1ESK

    • Unplug the battery and wear the anti-static band before proceeding

    • Unscrew the six Philips screws around the battery and lift the battery

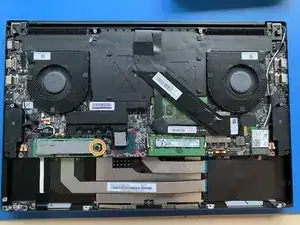

  3. gLyIPhFXtMEGmRSG

    • Find the SSD and unscrew the single screw

    • Once it is unscrewed, the SSD will pop up on one side

    • Carefully remove the SSD and place it to the side

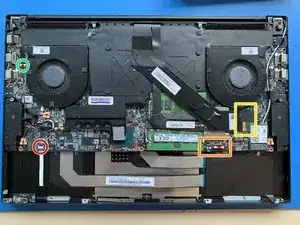

  4. uU1RYB1Pr2eJQyps

    • Locate the two display cables to the left of the left speaker and disconnect both. (one is underneath the other)

    • Locate and disconnect the four cables

    • Disconnect one cable that is underneath the SSD

    • Disconnect another cable that is next to the right fan

    • Disconnect the final two cables that are to the left of the battery connector

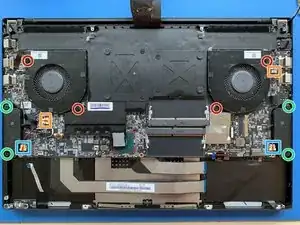

  5. AKpgxCoeZIKPibVN

    • Unscrew the four screws on the fans (two screws on each)

    • Make sure to unplug the connector on each of the fans. Lift and remove the fans.

    • Unscrew the four screws on the speakers (two screws on each)

    • Make sure to unplug the connector on each of the speakers and place them to the side

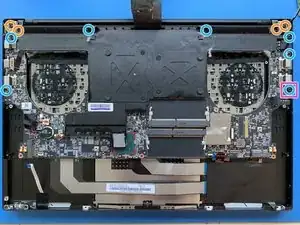

  6. TOShhBHuDQ6HeL3p

    • Remove the two screws on each hinge and pick up the black pieces

    • Locate the seven screws holding down the motherboard and remove them

    • Remove the plastic headphone jack cover

    • Lift up the MOBO and place it to the side

    • Be careful when handling the motherboard and make sure you’re wearing the anti-static band.

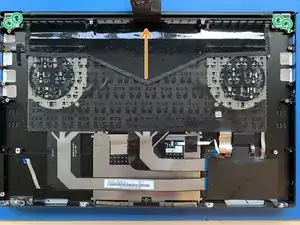

  7. gLgtsXExJTyJNiut

    • Unscrew the LCD

    • Slide the LCD connectors through the opening at the top when removing the LCD

    • Slide the LCD connectors of the new LCD through the opening at the top

    • Screw the new LCD back into the bottom case

    Step 7 talks about removing LCD and fitting new LCD. Isn't LCD the screen? This article is supposed to be keyboard replacement.

    Steve Cooke -

    • Make sure all of the cables are in sight once the motherboard has been placed down

    • Screw in both the motherboard screws and the hinges

    • Reconnect the motherboard connectors

    • Place and screw in the fans and speakers

    • Make sure the SSD has been reconnected and screwed in

    • Screw the battery back in and reconnect the battery

    This tutorial is for replacing the display not the keyboard

    someone failed at copy and pasting

    truthmoab0301 -

Abschluss

Make sure all of the keys on the keyboard are working properly. Once done, call the user to pick up their laptop.
