Razer Blade 15 Motherboard Replacement

Geschrieben von: Ved Pitre
  • Kommentare: 4
Razer Blade 15 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 25 Minuten

Einleitung

  1. ojufe6WgcwapnwUr

    • Flip over to the back side of the laptop

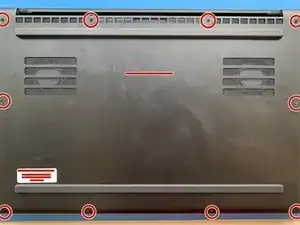

    • Remove the 10 screws at the bottom of the Razer using a T5 screwdriver head

  2. OrswgaOqAaByxZxh

    • Unplug the battery and wear the anti-static band before proceeding

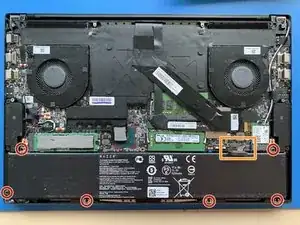

    • Unscrew the six Philips screws around the battery and lift the battery

  3. rf4B6yEZXP1wghsE

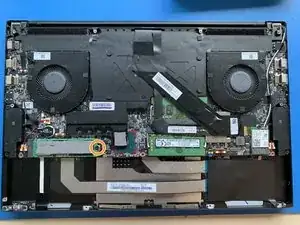

    • Find the SSD and unscrew the single screw

    • Once it is unscrewed, the SSD will pop up on one side

    • Carefully remove the SSD and place it to the side

  4. Uff4l1fkHAg4bHCG

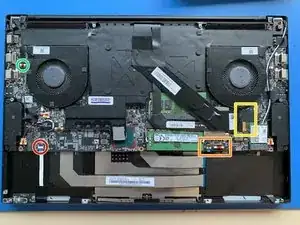

    • Locate the two display cables to the left of the left speaker and disconnect both. (one is underneath the other)

    • Locate and disconnect the four cables

    • Disconnect one cable that is underneath the SSD

    • Disconnect another cable that is next to the right fan

    • Disconnect the final two cables that are to the left of the battery connector

    What's the cable in green? I forgot to disconnect it and it snapped. It doesn't look like it goes anywhere however my laptop will no start now

    Adam Hewitt -

  5. 3O6pVfNBf1HQnYcd

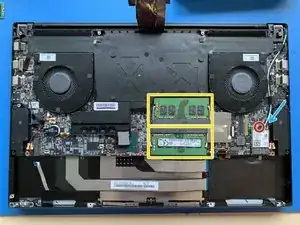

    • Move the two metal pieces to each side and remove the two RAM

    • Disconnect the two thin cables connected to the Wi-Fi card

    • Remove the screw and carefully pull out the Wi-Fi card

  6. BDTAGKXWHArunTM5

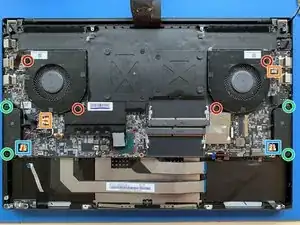

    • Unscrew the four screws on the fans (two screws on each)

    • Make sure to unplug the connector on each of the fans. Lift and remove the fans.

    • Unscrew the four screws on the speakers (two screws on each)

    • Make sure to unplug the connector on each of the speakers and place them to the side

  7. CaBMfpCbrPMmAPlg

    • Remove the two screws on each hinge and pick up the black pieces

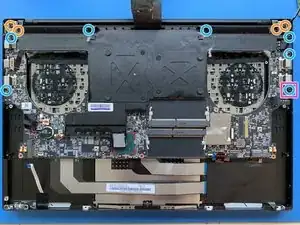

    • Locate the seven screws holding down the motherboard and remove them

    • Remove the plastic headphone jack cover

    • Lift up the MOBO and place it to the side

    • Be careful when handling the motherboard and make sure you’re wearing the anti-static band.

    • Make sure all of the cables are in sight once the motherboard has been placed down

    • Screw in both the motherboard screws and the hinges

    • Reconnect the motherboard connectors

    • Make sure you reconnect the Wi-Fi card and RAM

    • Place and screw in the fans and speakers

    • Make sure the SSD has been reconnected and screwed in

    • Screw the battery back in and reconnect the battery

    • Update DMI Info

Abschluss

Once the repair had been done. Call the user and let them know their laptop is ready for pick-up
