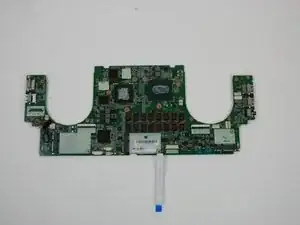

Razer Blade RZ09-0102 Motherboard Replacement

Geschrieben von: Evan Jepsen

Kommentare: 5

Razer Blade RZ09-0102 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

50 Minuten

Einleitung

Replacing the motherboard should be a last resort in the troubleshooting process so if you are not entirely sure it needs to be replaced double check before following this guide. Laptop motherboards are more integrated than as many separate components in a full size CPU are built into these motherboards. A motherboard may need to be removed if it is faulty and needs to be replaced or just to be upgraded. For this device the motherboard is required to be removed to access the underside of the keyboard.

Werkzeuge

Schritt 1

Before you begin, be sure to turn off your laptop.
Using a Torx T5 screwdriver, remove the ten 1/8 inch screws securing the back cover.
Remove the back cover.

I need the screws is there any way I can get them?

Lupita Muro -

Schritt 2

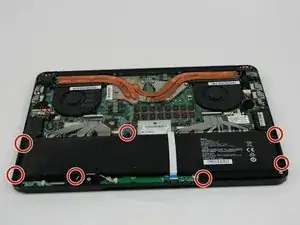

Remove the seven screws holding the battery in place using a Phillips #0 screwdriver.

Schritt 3

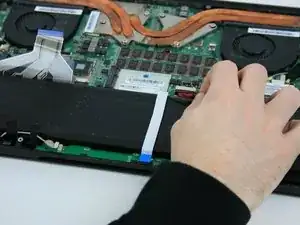

Unlock the ZIF connectors securing the right ribbon cable.
To unlock a ZIF connector, use an opening tool or your fingernail to flip up the small, hinged locking flap.
Carefully pull the two ribbon cables out of their sockets.

Schritt 4

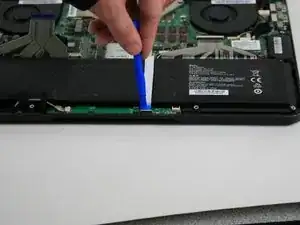

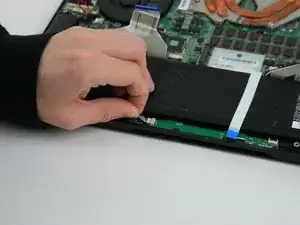

Use an opening tool to unlock the ZIF connector securing the white ribbon over the battery.

You know where I can buy that kind white ribbon, it hard find anywhere.

loona.ot12 - 29/11/19

Schritt 5

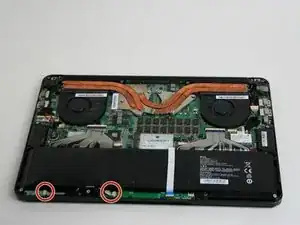

Carefully pull out the two connectors out of their sockets.
Pull parallel to the motherboard, not straight up.

Schritt 6

Pull the wide battery connector towards the battery to disconnect it from the motherboard.
Pull parallel to the motherboard, not straight up.

Schritt 7

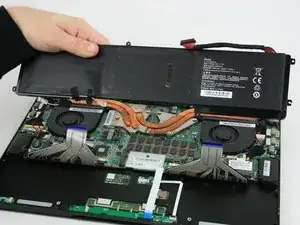

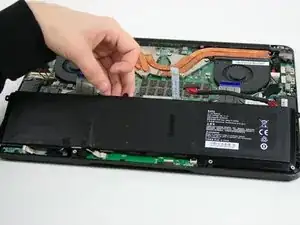

Remove the battery from the laptop.

I lost some of the screws! What are the right replacement screws for the back cover and the battery?

Anon - 07/02/21

Schritt 8

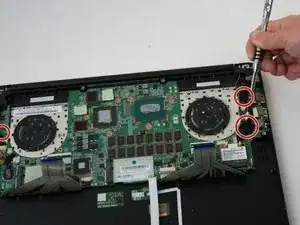

Using a Phillips #0 screwdriver, remove the two screws holding down the speaker.

Schritt 9

Disconnect the wire by pinching with your fingers and pulling up.

Schritt 10

Remove the speaker.

Schritt 11

Remove the three black rubber pads that cover the screws holding the fan.

Schritt 12

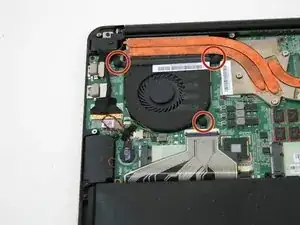

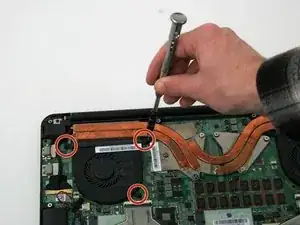

Use the Phillips #0 screwdriver to remove the three 1/4 inch screws.

Schritt 13

Disconnect the wire that goes from the fan into the white connector, but leave the wire attached to the fan.

Schritt 14

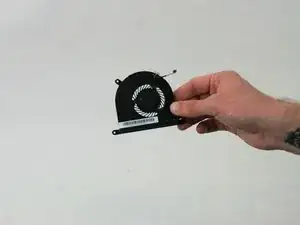

Lift the fan out with your hands.

Schritt 15

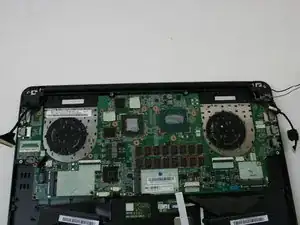

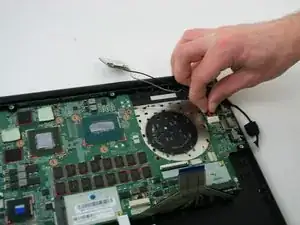

On the left and right sides of the motherboard, remove the black tape holding down the wires.

Schritt 16

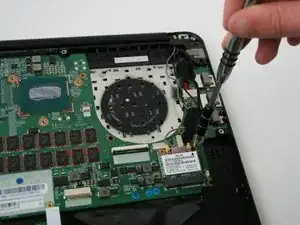

Using a Phillips #0 screwdriver, remove the single 4.5mm long screw holding down the network card.

Schritt 17

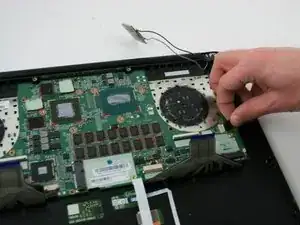

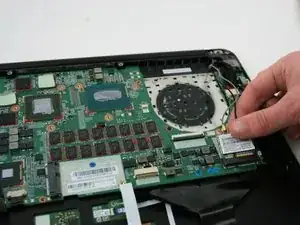

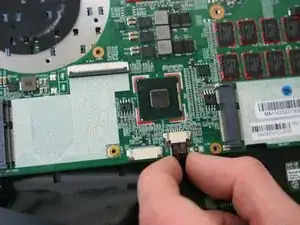

Pull out the network card from its connector on the motherboard.

Schritt 18

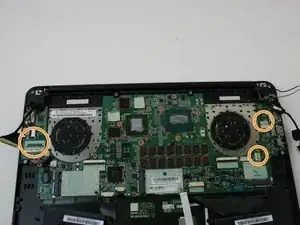

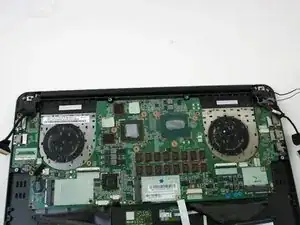

Disconnect the 2 wires on right side and the 1 wire on the left that holds the motherboard down. To remove the two right wires pull them straight out of their connectors. To remove the left wire pull up on the metal clamp and pull the wire straight out.
