Einleitung

The main reason you would want to replace the speakers in your laptop would be that they are faulty and not producing sound. Another might be that you just want to upgrade to a better speaker. The speakers in this device are located on the outer left and right sides of the motherboard. The speakers dimensions are 1 x 1.75.

  1. MZyF6AraMilpYiuF
    • Before you begin, be sure to turn off your laptop.

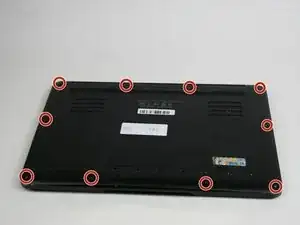

    • Using a Torx T5 screwdriver, remove the ten 1/8 inch screws securing the back cover.

    • Remove the back cover.

    I need the screws is there any way I can get them?

    Lupita Muro -

  2. aUhNR2HWFAjaPvJE
    aUhNR2HWFAjaPvJE
    iuSKbk315IwCPTD6

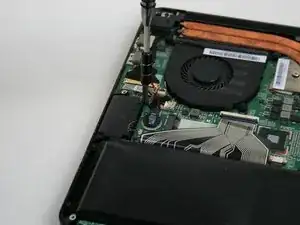

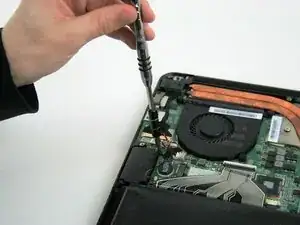

    • Using a Phillips #0 screwdriver, remove the two screws holding down the speaker.

  3. hOBlukveLWOjHnoq

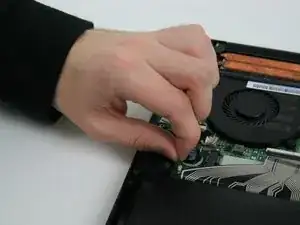

    • Disconnect the wire by pinching with your fingers and pulling up.

  4. phYNmHYaj4jaRir4

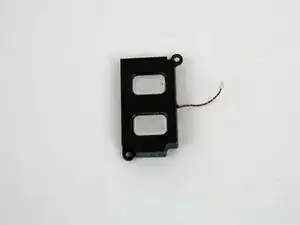

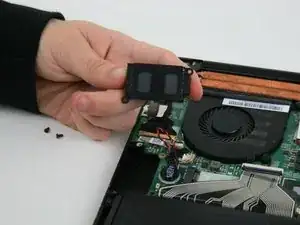

    • Remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
