Razer Blade RZ09-0130 2015 Battery Replacement

Geschrieben von: Quadre De'sean Grady
  • Kommentare: 0
Razer Blade RZ09-0130 2015 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 20 Minuten

Einleitung

Over time, lithium-ion batteries inevitably degrade, dramatically reducing their lifespan. The higher operating temperatures in gaming laptops speeds up their degradation; if you've been using your Razer Blade RZ09-0130 2015 for more than a couple years, and the battery life is either very short, or it can't even run while unplugged, it's definitely time for a replacement.

Before beginning these guide, make sure that the system is shut down, unplugged, and that there is no static build up on your person.

If you find your battery is swollen, take extreme caution in removal, and dispose of your battery through the proper channels.

  1. urbQ1qLdpYxoh3JI
    urbQ1qLdpYxoh3JI
    ImZGv1TPXFYE5JyE

    • Be sure to power off the device before beginning.

    • Use a Torx T5 screwdriver to remove the ten 3 mm screws along the edge of the back panel.

  2. VGXp115nUIwhLmPb
    VGXp115nUIwhLmPb
    fc31OnBDw1ga4Jgn

    • Remove the back panel from the laptop by sliding it away from the hinge.

    • This device is missing the battery. Make sure to detach the battery connector before proceeding with laptop repairs.

  3. DKuYBdGhICn66OmX

    • Detach the battery's ribbon cable from the motherboard.

  4. WMQxSxnSIynEpKxo

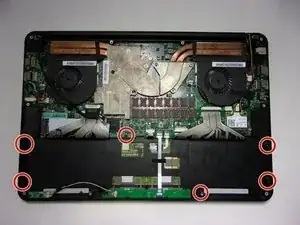

    • Use a Phillips #0 screwdriver to remove the six 3 mm screws securing the battery.

    • Lift the battery up and out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
