Razer Blade RZ09-0130 2015 Motherboard Replacement

Geschrieben von: Carson Kellerman
  • Kommentare: 0
Razer Blade RZ09-0130 2015 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

5 - 15 Minuten

Einleitung

If yourRazer Blade RZ09-0130 2015 isn’t starting or its performance is lackluster, your motherboard may be damaged. Because the motherboard is the most essential component to a computer, proceed with extra caution when going through these instructions. Although other components may work as expected, they could become damaged if the motherboard is mishandled.

  1. urbQ1qLdpYxoh3JI
    urbQ1qLdpYxoh3JI
    ImZGv1TPXFYE5JyE

    • Be sure to power off the device before beginning.

    • Use a Torx T5 screwdriver to remove the ten 3 mm screws along the edge of the back panel.

  2. VGXp115nUIwhLmPb
    VGXp115nUIwhLmPb
    fc31OnBDw1ga4Jgn

    • Remove the back panel from the laptop by sliding it away from the hinge.

    • This device is missing the battery. Make sure to detach the battery connector before proceeding with laptop repairs.

  3. peFKfL3QvYXeDiWj

    • Using the Phillips #0 screwdriver, remove the two 3mm screws from the right speaker.

  4. 5FCwopnDCGdrLMO5
    5FCwopnDCGdrLMO5
    TvXNULkYwTAQVQEW

    • Using your fingers, gently pull on the wire connecting the speaker to the motherboard until it disconnects.

  5. ymvAvH6JryZL1Gjd

    • Pick up and remove the speaker.

  6. QVw1WbCkkgctiLlh

    • Repeat the preceding steps to remove the second speaker.

  7. LXnFOLLIlYmPVSAf
    LXnFOLLIlYmPVSAf
    rJwcCsxyUFmHAjEJ

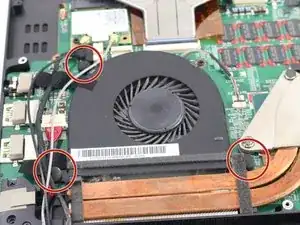

    • Remove the three screw caps by pulling them upward with your fingers.

  8. C6SOL66aKZAKvZQB

    • Remove the three 3mm Phillips #0 screws.

  9. RWPtSS1JQqZiU2LK
    RWPtSS1JQqZiU2LK
    PXapRIUDj6dsEDFX

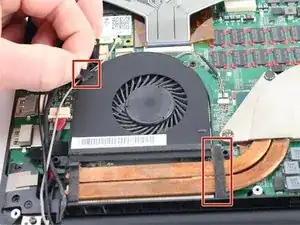

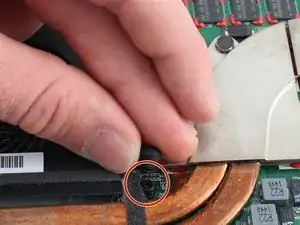

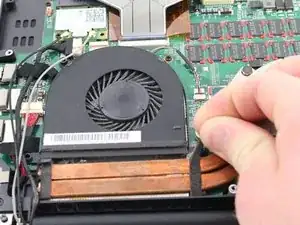

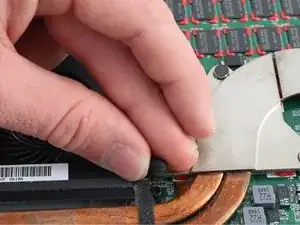

    • Peel back the two adhesive strips from the fan until they are removed.

  10. JFOErvxEMZMCUDfS
    JFOErvxEMZMCUDfS
    idTKvIeGKlMG3ef2

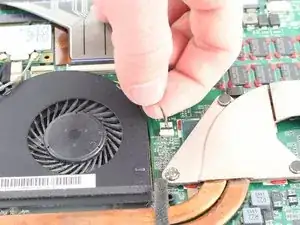

    oYAFOlyTfp2LFELh

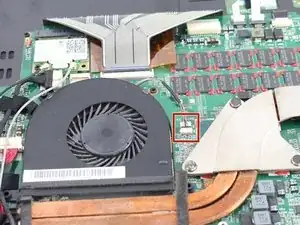

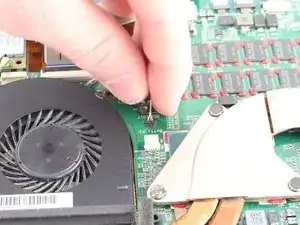

    • Remove the connector by pulling it away from the motherboard with your fingers.

  11. lm6LMXPVAimHKMy3

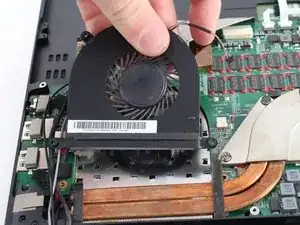

    • Holding the rounded edge of the fan, slowly lift upwards until it is removed.

  12. qdjLK6BDpKsvLfUP

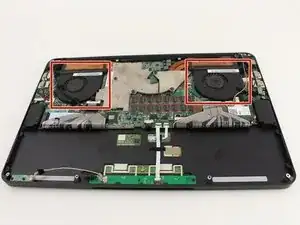

    • Repeat the preceding steps to remove the second fan.

  13. RlPed3VIBWYQvk6S

    • Using the Phillips #0 screwdriver, remove the four 3mm screws connecting the motherboard to the chassis of the device.

  14. IC4FlpnhOqISHPBb
    IC4FlpnhOqISHPBb
    5DFHvIJWWVGJQmnQ
    FsUNmMlKpV1ENrGi

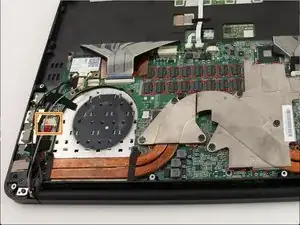

    • Using the Phillips #0 screwdriver, remove the three 3mm screws connecting the charging port to the chassis of the device.

    • Gently pull on the cables connecting the charging port to the motherboard until it disconnects.

    • Lift the port out of the device.

  15. LOOoXjmfqH6BatcW
    LOOoXjmfqH6BatcW
    wMDunBYqRwCZcHvR

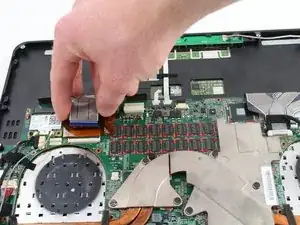

    • Remove the paper connector by first flipping the plastic crimp upwards and then pulling it away from the motherboard.

    • Repeat for the paper connector on the other side of the motherboard.

  16. cKKReMvFMYZW5YbJ
    cKKReMvFMYZW5YbJ
    GsQs6EQT5WFrgLrU

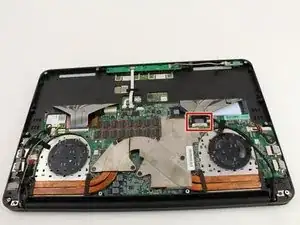

    • Remove the cable connecting the motherboard to the display by gently puling it upwards with your fingers.

  17. cKVHsHbEZRgUi2A5
    cKVHsHbEZRgUi2A5
    kgxKIrl6Pt2ENAS4
    K2F3JPuayMDGLc31

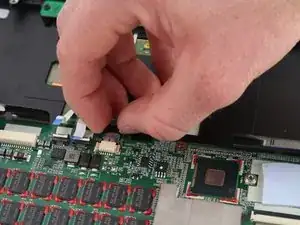

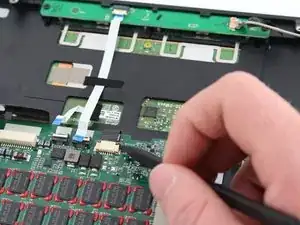

    • Using a plastic spudger, push the plastic crimps holding the paper connector to the motherboard until they unlock.

    • Pull the paper connector away from the motherboard.

  18. QJUXAr6TlVFQIE35
    QJUXAr6TlVFQIE35
    GpPjLgkCsBPfNDx4

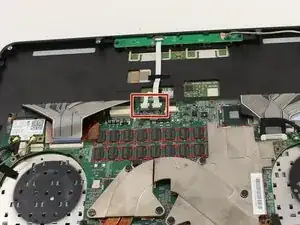

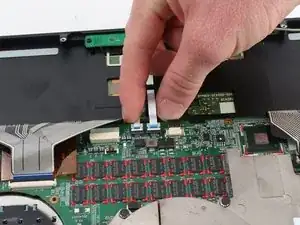

    • Remove the small connectors connecting the motherboard to the trackpad by first flipping up the plastic crimps and then pulling them away from the motherboard with your fingers.

  19. AdU1xAEMm2w1UTFY
    AdU1xAEMm2w1UTFY
    mCaaBmdnPICYP3bs
    TeLj4vsnNgghUEoo

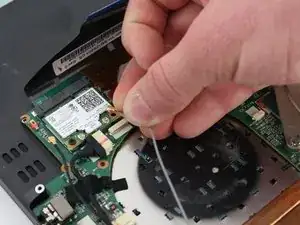

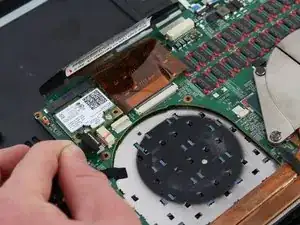

    • Remove the two small cables connecting the display to the motherboard by lifting them away from the motherboard with your fingers.

    • Disconnect the last cable connecting the display to the motherboard by pulling on it gently with your fingers.

  20. RqVF4SESAaRcOiTl

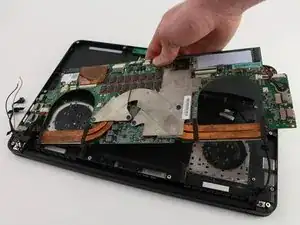

    • With the trackpad away from your body, lift the right side of the motherboard up.

    • Then, pull it up and to the right to remove the motherboard from the chassis.

    • If you do not lift your motherboard out and to the right, you might snap the audio port of your device since it protrudes slightly outside of the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
