Razer Blade RZ09-0130 2015 Speaker Replacement

Geschrieben von: Carson Kellerman
  • Kommentare: 0
Razer Blade RZ09-0130 2015 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

2 - 3 Minuten

Einleitung

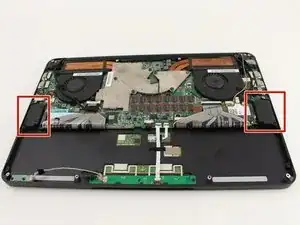

This guide will teach you how to replace the stock speakers that come with the Razer Blade RZ09-0130 2015 laptop. If you are replacing damaged speakers or updating them with newer models, make sure the replacement speakers are compatible before applying this procedure. In addition, run your audio troubleshooter before you open the laptop to ensure that your issue is not software related. The speakers are located along the left and right hand side of the circuitry, each being 1 x 1.75 inches in dimension.

  1. urbQ1qLdpYxoh3JI
    urbQ1qLdpYxoh3JI
    ImZGv1TPXFYE5JyE

    • Be sure to power off the device before beginning.

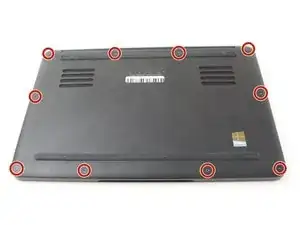

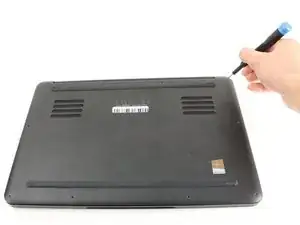

    • Use a Torx T5 screwdriver to remove the ten 3 mm screws along the edge of the back panel.

  2. VGXp115nUIwhLmPb
    VGXp115nUIwhLmPb
    fc31OnBDw1ga4Jgn

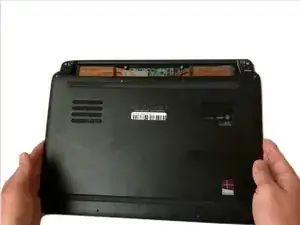

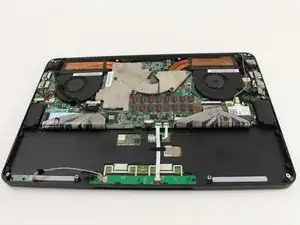

    • Remove the back panel from the laptop by sliding it away from the hinge.

    • This device is missing the battery. Make sure to detach the battery connector before proceeding with laptop repairs.

  3. peFKfL3QvYXeDiWj

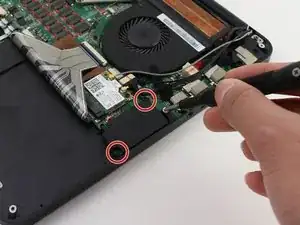

    • Using the Phillips #0 screwdriver, remove the two 3mm screws from the right speaker.

  4. 5FCwopnDCGdrLMO5
    5FCwopnDCGdrLMO5
    TvXNULkYwTAQVQEW

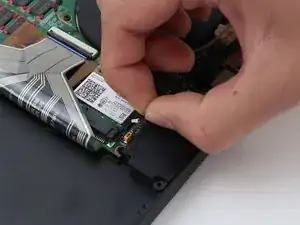

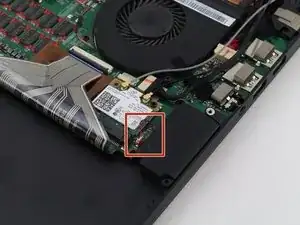

    • Using your fingers, gently pull on the wire connecting the speaker to the motherboard until it disconnects.

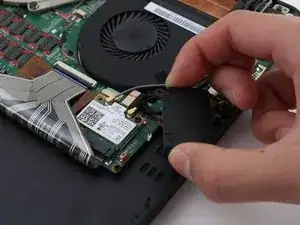

  5. ymvAvH6JryZL1Gjd

    • Pick up and remove the speaker.

  6. QVw1WbCkkgctiLlh

    • Repeat the preceding steps to remove the second speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
