Razer Blade RZ09-0130 2015 Trackpad Button Replacement

Geschrieben von: Carson Kellerman
  • Kommentare: 1
Razer Blade RZ09-0130 2015 Trackpad Button Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

1 - 2 Minuten

Einleitung

This procedure is necessary because trackpad functionality is a core feature to any laptop. It should be noted that the root causes for trackpad problems within the Razer Blade RZ09-0130 2015 laptop are typically software related, so be sure that Windows and Razer Synapse is up-to-date before attempting to open the laptop. The bulk of this replacement comes from unscrewing the back panel using a T5 Torx screwdriver. Once the back panel is off, use a Phillips #0 screwdriver to remove the two screws holding the trackpad’s circuity.

  1. urbQ1qLdpYxoh3JI
    urbQ1qLdpYxoh3JI
    ImZGv1TPXFYE5JyE

    • Be sure to power off the device before beginning.

    • Use a Torx T5 screwdriver to remove the ten 3 mm screws along the edge of the back panel.

  2. VGXp115nUIwhLmPb
    VGXp115nUIwhLmPb
    fc31OnBDw1ga4Jgn

    • Remove the back panel from the laptop by sliding it away from the hinge.

    • This device is missing the battery. Make sure to detach the battery connector before proceeding with laptop repairs.

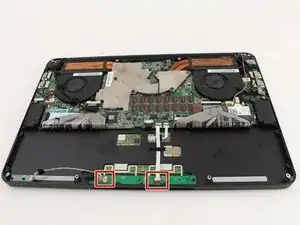

  3. 3cPypmTmfiHJL1uT
    3cPypmTmfiHJL1uT
    VbHtYe3WbaGFCiIp
    BpNFrZ6fdRUtjedU

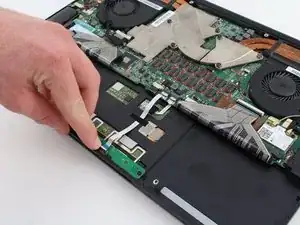

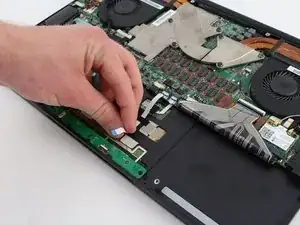

    • Detach the two connectors from the motherboard by gently pulling them directly out of their ports with your fingers.

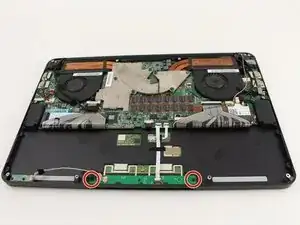

  4. YyrOuLJxfOWHYJml
    YyrOuLJxfOWHYJml
    LgH6Nkk6PBW5XeCT

    • Use a Phillips #1 screwdriver to remove the two 3 mm screws holding the trackpad's circuit board to the chassis.

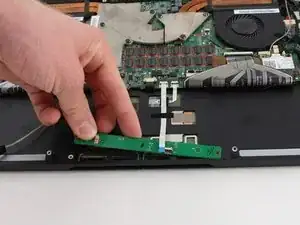

  5. kZZRABNuHEhhLbCk

    • Remove the trackpad circuit board by holding one end and gently lifting it upwards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
