Razer Blade Stealth 2016 Fan Replacement

Geschrieben von: Katie Murphy

Kommentare: 6

Razer Blade Stealth 2016 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

9 Minuten

Einleitung

The purpose of computer fans is to cool down the device. As the computer is operating, the device produces heat. The fans will bring cooler air in to cool down the device. The fans are meant to cool the device down, if this part fails to do this, the computer could shutdown and need a reboot. If your fans in your Razer Blade Stealth 2016 isn't working properly, this guide will show you how to remove and replace the fans.

Werkzeuge

Schritt 1

Use a Torx screwdriver to remove the eight 3 mm screws on the back case.
Remove the rear cover by prying up lightly starting in one of the corners.

Schritt 2

Use a Phillips screwdriver to remove the six screws securing the battery.

Phillips* screw heads not T4 Torx based on the photo.

Sean Christiansen -

You’re right! Thanks for the catch—I’ll fix that step.

Arthur Shi -

Schritt 3

Unplug the battery connector from the motherboard.
Remove the battery from the device.

Schritt 4

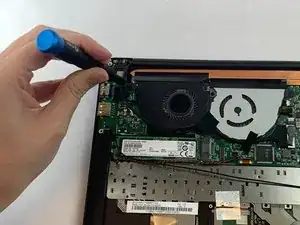

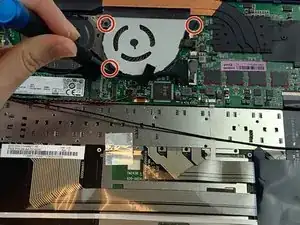

Remove the three 3.38 mm screws from the left fan (this fan should be black).

Schritt 5

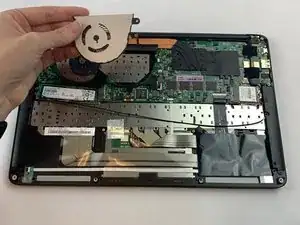

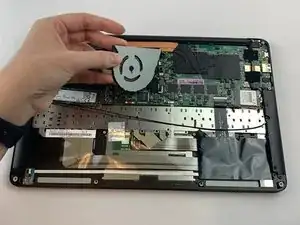

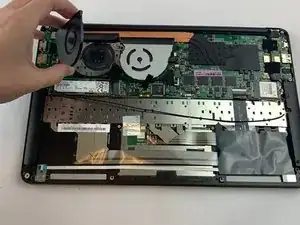

Carefully lift and remove the left fan.

How do you disconnect the cable attaching it to the motherboard ?

i.R KeRsT - 07/11/20

I’m also interested in this! There is no mention of how to unplug the fan cable

Andrew Ang - 30/01/21

The cable/ribbon is unclamped free by sliding the cream coloured rectangles (on the left and right of the ribbon) 2mm towards the laptop hinge. It re-clamps the ribbon back in the original position.

Cam McNicol -
