Razer Blade Stealth 2016 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

The keyboard is a vital component of how a standard PC works. The keyboard allows a user to interact and use a computer. This guide will show you how to remove and replace the keyboard of your Razer Blade Stealth 2016.

Before starting this guide, power off your laptop and unplug it from the power adapter.

Werkzeuge

Ersatzteile

Razer Blade RC30-0196 Battery

Schritt 1

Use a Torx screwdriver to remove the eight 3 mm screws on the back case.
Remove the rear cover by prying up lightly starting in one of the corners.

Schritt 2

Use a Phillips screwdriver to remove the six screws securing the battery.

Phillips* screw heads not T4 Torx based on the photo.

Sean Christiansen -

You’re right! Thanks for the catch—I’ll fix that step.

Arthur Shi -

Schritt 3

Unplug the battery connector from the motherboard.
Remove the battery from the device.

Schritt 4

Remove the red and black cables that are attached to the motherboard.

Schritt 5

Remove the four 3.4 mm screws around the black square using a T4 Torx screwdriver.
Remove the heatsink.

Schritt 6

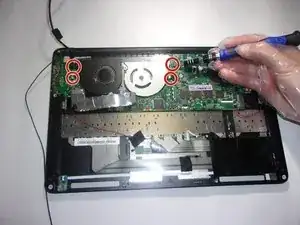

Remove the 3.4 mm screws to the cooling fans using a T4 Torx screwdriver.
Remove the cooling fans.

Schritt 7

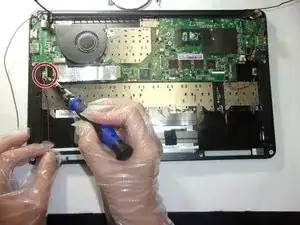

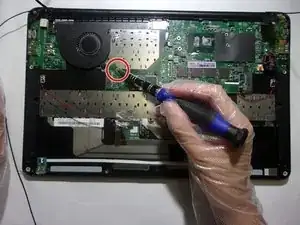

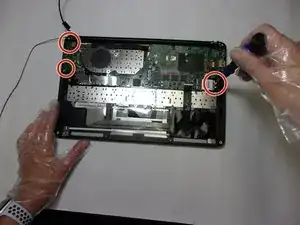

Remove the 3.4 mm screws on the perimeter of the motherboard using a T4 Torx screwdriver.

Schritt 8

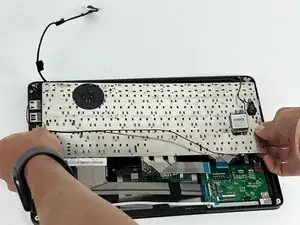

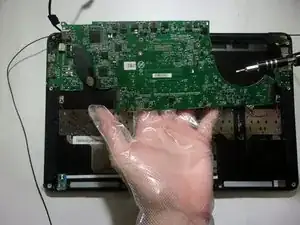

Remove the motherboard.

Schritt 9

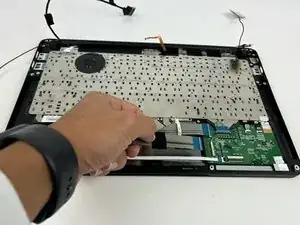

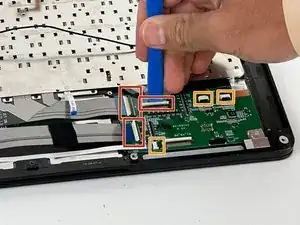

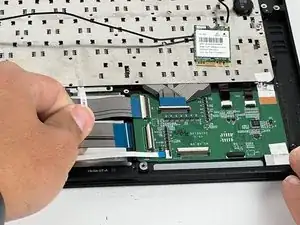

Flip all white tabs up to unlock three ZIF connectors using the opening tool.

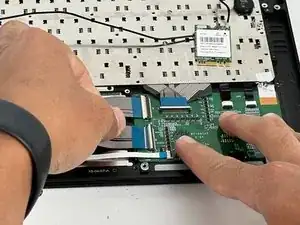

Flip all black tabs up to unlock the three ZIF connectors using the opening tool.

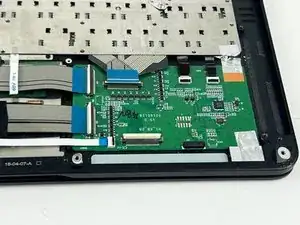

This is how the tabs look in the flipped up position.
