Einleitung

Having a stable connection to the internet is essential for computer gaming as well as day to day use. Without a working wireless card, your system will not be able to support such a connection which can in turn be a very large inconvenience. This guide will walk you through all of the steps necessary to replace the Killer 1535 Wireless Card in your Razer Blade Stealth 2016 and get it back to working condition.

Before beginning the guide, be sure to power off your computer and disconnect from the charging cable.

  1. hdbyoBWNB6HCkOsL
    hdbyoBWNB6HCkOsL
    ahbJNwaE14yqxhoJ
    LlvEjesZiBwLkZgW
    • Use a Torx screwdriver to remove the eight 3 mm screws on the back case.

    • Remove the rear cover by prying up lightly starting in one of the corners.

  2. qosKrZwqGwThRWXx
    qosKrZwqGwThRWXx
    pjeAgo1U6BfVFjZe
    • Use a Phillips screwdriver to remove the six screws securing the battery.

    Phillips* screw heads not T4 Torx based on the photo.

    Sean Christiansen -

    You’re right! Thanks for the catch—I’ll fix that step.

    Arthur Shi -

  3. Qt4xQYIaS6rerRxH
    • Unplug the battery connector from the motherboard.

    • Remove the battery from the device.

  4. XCjImOL363YQn5xx
    XCjImOL363YQn5xx
    FtLcQBPGi2TAqWh6
    qKtD6hEvRSk2ArE4

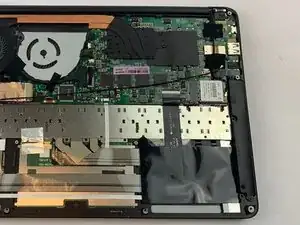

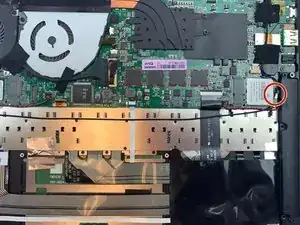

    • Carefully remove the auxiliary and main wire from the Killer 1535 wireless card.

  5. JhrkWEwLIfdUW5ST
    JhrkWEwLIfdUW5ST
    I1QWAusEd4YmstaS
    1erB5TZxOFOWxEFR

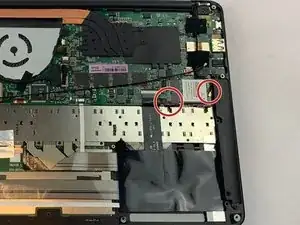

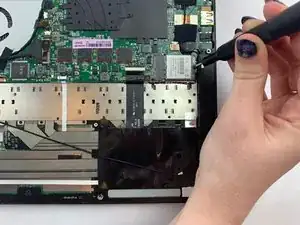

    • Use a Phillips #00 screwdriver to remove the two 2.61 mm screw holding the card in place.

  6. LuxBPnFBYWJfuPSH
    LuxBPnFBYWJfuPSH
    2c46HkpqtIvRebsB

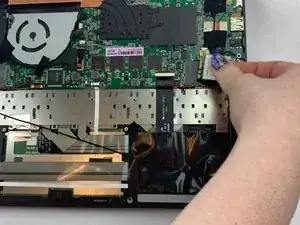

    • Carefully remove the card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
