Razer Blade Stealth 2017 Audio and USB-A Port Replacement

Geschrieben von: Helene Willits
  • Kommentare: 7
Razer Blade Stealth 2017 Audio and USB-A Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide outlines how to replace the audio and USB-A port module in the Razer Blade Stealth 2017. The audio may be faint or not work. This module is found on the left-hand side of the laptop and often has issues regarding loose ports and external device communication. Some tools are required for this replacement.

  1. LxXeUEUX1QsYMuo2
    LxXeUEUX1QsYMuo2
    qnJFsCybk6ZWj3fs

    • Before you begin, be sure to turn off your laptop and discharge the battery down to 25%.

    • Use a Torx T5 screwdriver to remove the eight, 3mm screws on the bottom cover of the laptop.

    • Whenever you remove screws from the device, remember to save and label them.

  2. qk4H6BDjtIosjQR5

    • Remove the bottom cover of the laptop by sliding it away from the hinge.

    • Do not force the cover up!

  3. QIvH3Auj5t3CqgN5
    QIvH3Auj5t3CqgN5
    SbmLLqpMocvpYq1W

    • Use your fingernail to pry up and disconnect the battery from the motherboard.

  4. F2jGBNOC4tpmVq16

    • Use a Phillips #00 screwdriver to remove the six, 5mm screws securing the battery.

    Do you have to remove the battery before swapping the wifi card? Is disconnecting the power not enough?

    Charles Tsai -

    Hi Charles,

    If you’re swapping the Wi-Fi card, you don’t need to remove the battery. Disconnecting it will suffice.

    Arthur Shi -

    Are two of these screws shorter than the other four? And if so, where do the two shorter screws go?

    James Spinella -

    Looks like the two shorter screws go where the trackpad is!

    James Spinella -

  5. yvhnafCZb3yMYkjF
    yvhnafCZb3yMYkjF
    QrZNXNVFLGHaBM5M

    • Remove any tape attached to the battery.

    • Use the plastic spudger to pry out the battery.

    After removing the 6 screws securing the battery, mine does not come out easily. There is resistance, and I don't wanna forcefully pull it out. Is it supposed to be easy to pick up and take out or is there some sort of tape holding it down from the bottom?

    kairos -

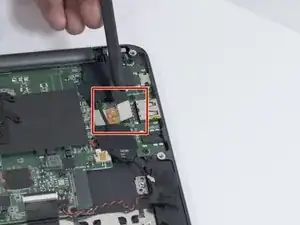

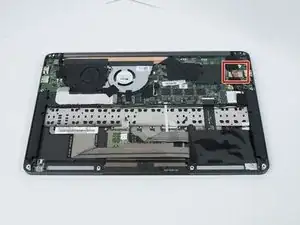

  6. joLpEQhOcblIVmmc
    joLpEQhOcblIVmmc
    gsUbmL2UvNuIEJZI

    • Use a plastic spudger to lift up the module connector.

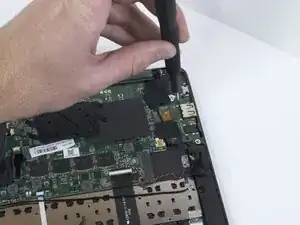

  7. 223U34gljROkFqoZ
    223U34gljROkFqoZ
    UXb1apxECfvLuWVt

    • Use a Phillips #00 screwdriver to remove the two, 3mm screws from the USB-A and audio port module.

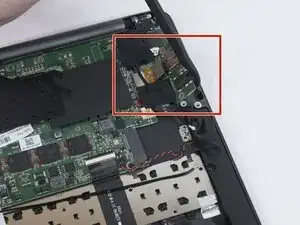

  8. MLTeMUDXBsPGgnbG

    • Use a plastic spudger to remove the USB-A and audio port module from the chassis.

    This guide stops at removing it, what do we replace it with? Is it possible to buy a new usb-c + audio module online?

    David McNulty -

    @david0438 I have the same question. My Razer stopped charging but everything else works fine, leaving me to think it is a USB-C port that went bad. I just need to find a suitable replacement, since Razer wanted me to pay $700 to replace the ENTIRE motherboard

    Dylan Tarzian -

Abschluss

To reassemble your device, follow these instructions in reverse order.
