Razer Phone Display Assembly Replacement

Geschrieben von: Sebastian Barragan
  • Kommentare: 19
Razer Phone Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

Is your Razer Phone's touch screen unresponsive, cracked, or not displaying properly? If so, here is the guide to replacing the display assembly containing the glass touch screen, the digitizer, and LCD screen. The tools you need are a #000 Phillips screw driver, a Torx head T5, tweezers, metal spudger and Jimmy.

  1. UHmbEJTDN2OLfWs3
    UHmbEJTDN2OLfWs3
    u1xtOwggObEMIAuM
    YJGuxIfmDN63eHJa

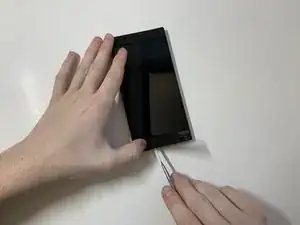

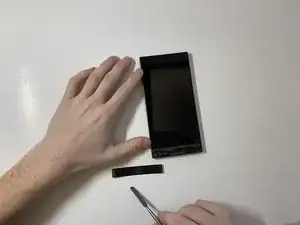

    • Remove the plastic speaker grills by using the metal spudger to pry underneath the strips.

    • Peel off the plastic speaker grill to reveal the screws.

    • Heating up the plastic grills make them easier to remove.

    • Peeling off the plastic speaker grill will ruin the adhesive used to keep it in place. A new adhesive must be used to put the grill back on the device.

    Double sided tape can be used to adhere the grills in place.

    Lucano -

    How to make the Another adhesive??? Plz rply

    My razed Phone Speaker grills can't put again Perfectly

    Ferdi Pongbubun -

    Where can i find a Charging Connector for Razer Phone 2 to buy….becouse the only place i când find IT is in India and they only delyver to

    curteanuice13 -

  2. H14TwgyqMIkJmnDX
    H14TwgyqMIkJmnDX
    BkDNN5kKyRSldTnN

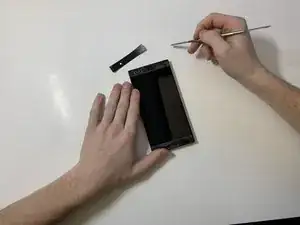

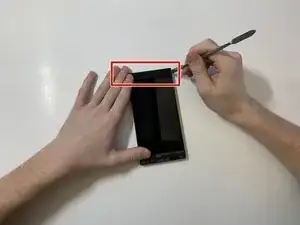

    • Pry the top plastic grill off with the metal spudger and reveal the screws.

  3. FFYYjPyDbPq1XdZJ
    FFYYjPyDbPq1XdZJ
    QyYAxMTteSFoIuUj
    3EEnv6vZHOU1MwwI

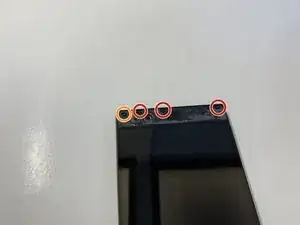

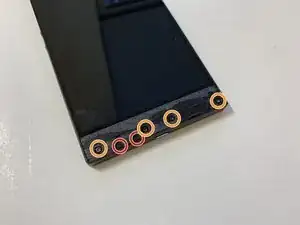

    • Remove five (two bottom, three top) 2.5 mm screws with the Phillips #000 screwdriver.

    • Remove five (four bottom, one top) 5.5 mm screws with the Torx Head T5 screwdriver.

  4. kcwmZhNLNg6vWoam
    kcwmZhNLNg6vWoam
    xsVG5oZj6x6Pbt1Y

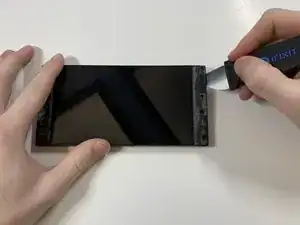

    • Remove the display assembly by using the Jimmy to separate the assembly from the phone's frame.

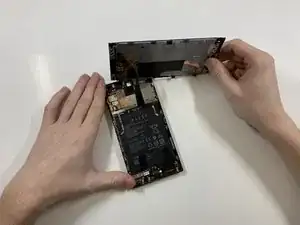

    • Lift the display assembly away from the other half of the phone.

  5. 1XCCgfH2iSyUxOI6
    1XCCgfH2iSyUxOI6
    Y4juEudwmO43TcqZ
    reHbXBVY5VddEVBk

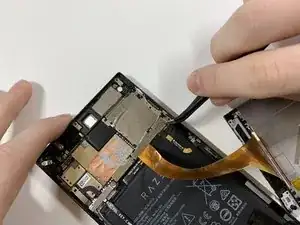

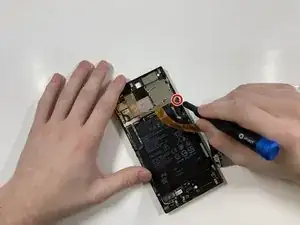

    • Remove one 2.5 mm screw holding down the metal bracket connector using the Phillips #000 screwdriver.

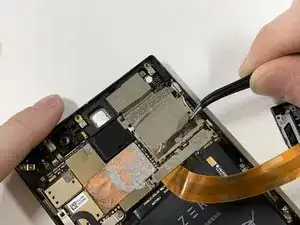

    • Peel back the metallic shielding over the connector using tweezers.

    • Remove the metal bracket connector.

    Hi you got any screen for sale thanks

    anwarhussain21786 -

  6. tasuVE43LOrXjn2I
    tasuVE43LOrXjn2I
    ed6WKXEFH2uA2upy

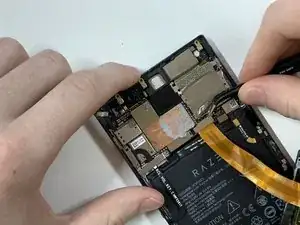

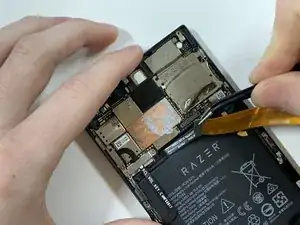

    • Grab hold of the the screen ribbon with the tweezers and remove it from the rest of the phone to free the assembly display.

    I would highly recommend avoid using metal tweezers for this step.

    Otherwise, be EXTREMELY careful with them when near the contacts around the ribbon cable.

    With the battery still plugged in, trying to unplug the ribbon connector of the screen with a metal tool will cause shorts between the tiny contacts.

    John Li -

Abschluss

To reassemble your device, follow these instructions in reverse order.
