Razer Phone Motherboard Replacement

Geschrieben von: David Todd

Kommentare: 16

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

45 Minuten

Einleitung

Having wireless connection problems with your Razer Phone and you need to replace the motherboard? To replace it follow this guide.

Werkzeuge

Ersatzteile

No parts required.

Schritt 1

Remove the plastic speaker grills by using the metal spudger to pry underneath the strips.
Peel off the plastic speaker grill to reveal the screws.
Heating up the plastic grills make them easier to remove.
Peeling off the plastic speaker grill will ruin the adhesive used to keep it in place. A new adhesive must be used to put the grill back on the device.

Double sided tape can be used to adhere the grills in place.

Lucano - 01/08/19

How to make the Another adhesive??? Plz rply

My razed Phone Speaker grills can't put again Perfectly

Ferdi Pongbubun - 19/08/19

Where can i find a Charging Connector for Razer Phone 2 to buy….becouse the only place i când find IT is in India and they only delyver to

curteanuice13 - 23/02/20

Schritt 2

Pry the top plastic grill off with the metal spudger and reveal the screws.

Schritt 3

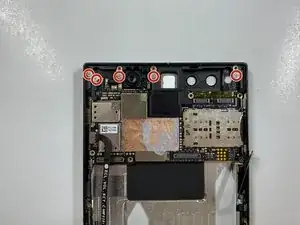

Remove five (two bottom, three top) 2.5 mm screws with the Phillips #000 screwdriver.
Remove five (four bottom, one top) 5.5 mm screws with the Torx Head T5 screwdriver.

Schritt 4

Remove the display assembly by using the Jimmy to separate the assembly from the phone's frame.
Lift the display assembly away from the other half of the phone.

Schritt 5

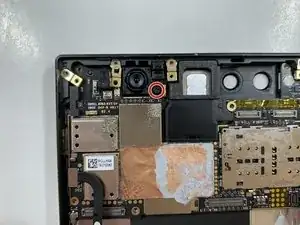

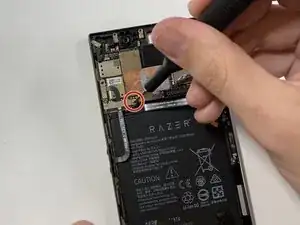

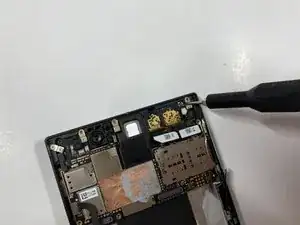

Remove one 2.5 mm screw holding down the metal bracket connector using the Phillips #000 screwdriver.
Peel back the metallic shielding over the connector using tweezers.
Remove the metal bracket connector.

Hi you got any screen for sale thanks

anwarhussain21786 -

Schritt 6

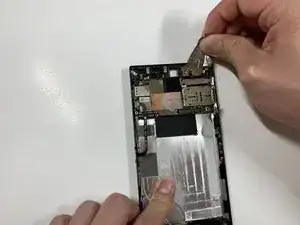

Grab hold of the the screen ribbon with the tweezers and remove it from the rest of the phone to free the assembly display.

I would highly recommend avoid using metal tweezers for this step.

Otherwise, be EXTREMELY careful with them when near the contacts around the ribbon cable.

With the battery still plugged in, trying to unplug the ribbon connector of the screen with a metal tool will cause shorts between the tiny contacts.

John Li -

Schritt 7

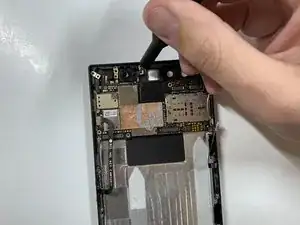

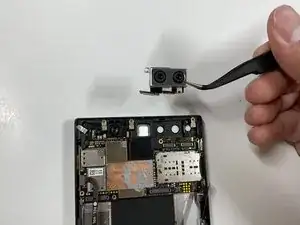

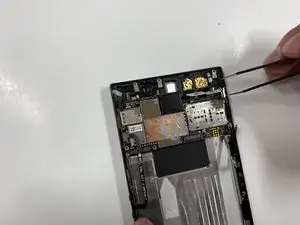

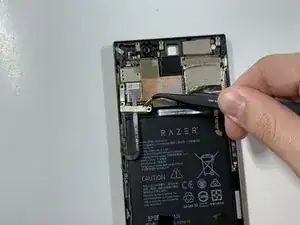

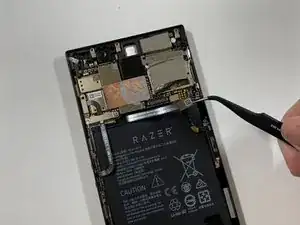

Grab hold of the connector on the right side of the phone (just above the battery) using the tweezers.
Remove the connector.

Schritt 8

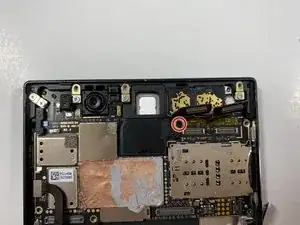

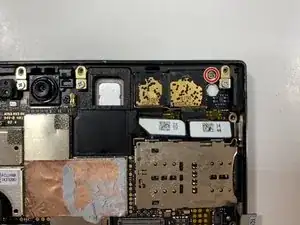

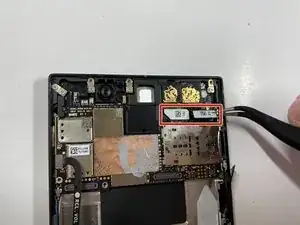

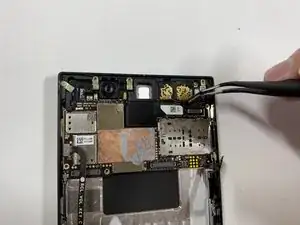

Remove the 2.5 mm screw holding down the bracket with a Phillips #000 screwdriver.

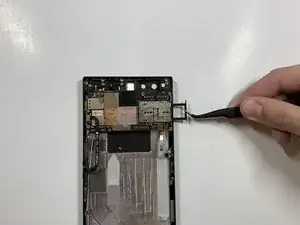

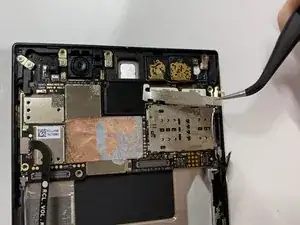

Grab the bracket with the tweezers and remove it.

Careful.

There's actually 2 screws you need to remove with this step before you can remove the bracket..

John Li -

Schritt 9

Peel off and pull out the elastic tabs at the bottom of the battery.

It isn’t necessary to remove the battery.

Lucano - 01/08/19

Schritt 10

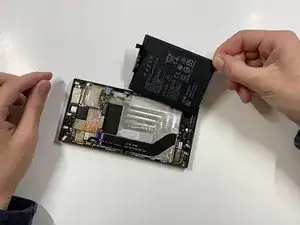

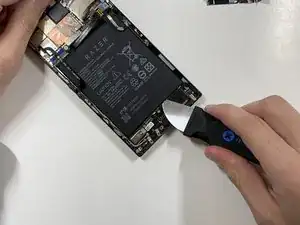

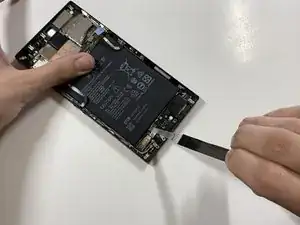

Carefully use the Jimmy to wedge the battery out of the phone.

It isn’t necessary to remove the battery

Lucano - 01/08/19

Thank you very much.

familykeepers.ca - 14/12/19

battery razer phone 1 and 2 is the same type?

my phone is razer phone 1, and only see online shop selling the battery for razer phone 2

Alpha Jon - 22/04/20

Where I can get the design specs for the razer phone 1 battery? I think they are not producing it anymore…

h_yilei - 17/12/20

It is 376989 in size I brought a 396787 but without the BMS board specs still cannot fix it.

And also what is the Panasonic 777156? It has 6 pins under it, it seems not like a capacitor and cannot find replacement on digi-key.

h_yilei - 17/12/20

I used this guide to replace my battery for my Razer 2 phone and the front speaker grills have no screws at all. Had to access the battery from behind the phone. So apparently I have a different version of Razer 2 phone. So followed another guide and replaced the battery. Unfortunately, I had to deal with the speaker grills.

Nick T -
