Razer Viper Mini Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

If your Razer Viper Mini cable is damaged or not working properly, or you want to change the cable to a different one, use this guide to replace the mouse cable.

Regularly, a mouse that is connected to a computer or USB enabled device will work without issues. However, over time the mouse cable will go through wear and tear and will become damaged - resulting in a mouse constantly disconnecting or not connecting at all.

It’s important to mention that using a plastic spudger (like in Step 4) to open the device is essential as using metal devices can easily damage your mouse.

Before using this guide, make sure the mouse is unplugged from any device.

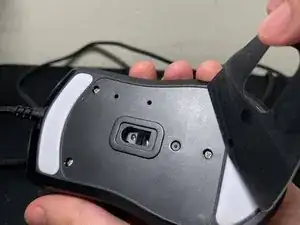

  1. RoEON4EjKcRkGTiS
    RoEON4EjKcRkGTiS
    OcuhpmFlTvPZkFZu

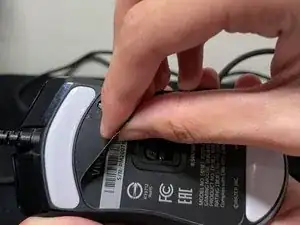

    • Make sure to unplug the mouse before doing anything.

    • To access the screws, you will need to take off the information sticker on the bottom of the mouse.

    • Remember to take a photo of your serial number or write it down.

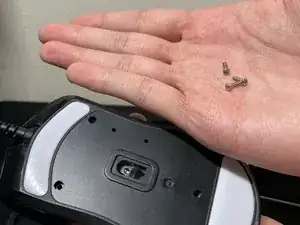

  2. PBnaDUXVlWXUxRXa
    PBnaDUXVlWXUxRXa
    1nMFgFt4cCLnPwGP

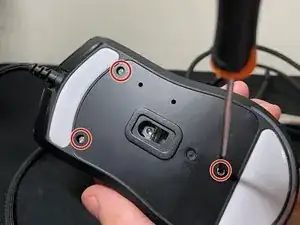

    • Use the Phillips #0 screwdriver to remove the three 2 mm screws from the bottom of the mouse.

    • When removing the screws, unscrew them each slightly and consecutively until you can pull them out with your hands.

  3. 12qU1oBTLyDNaR4r
    12qU1oBTLyDNaR4r
    vWHlaW5UMGfhjOsD

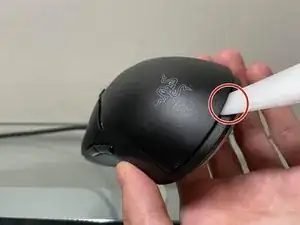

    • Use the plastic spudger to gently lift the backplate in order to access the internal components.

    • Insert the spudger into the bottom front of the mouse and slowly move it around the mouse which will release the backplate.

    • Do not try to jab the mouse with the plastic spudger with a large amount of force, this can damage the plating of your mouse.

  4. RJIEqQPaEWXRDpKt
    RJIEqQPaEWXRDpKt
    TqsQ61P2AeiROPW1

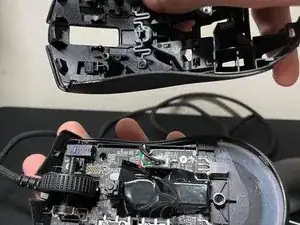

    • Use the plastic spudger once again to remove the shell of the mouse.

    • It is exactly like the previous step as you have to dig the plastic spudger gently into the bottom of the mouse and move it inwards to slowly release the shell.

    • You have now successfully removed the top shell of the mouse!

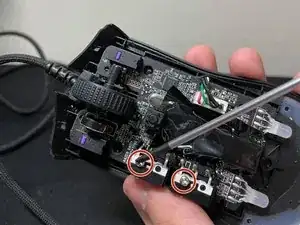

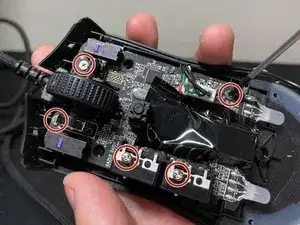

  5. DOoTfjpQRcGp6mJS
    DOoTfjpQRcGp6mJS
    LUyFFVHNYWyvrUQg
    ppdJNdrpxKlIZCfp

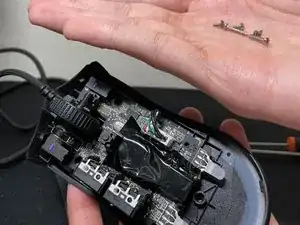

    • Use your Philips #0 screwdriver to remove five 2.5 mm screws from the board.

    • Unscrewing the top two screws will make it easier for you to get to the others after.

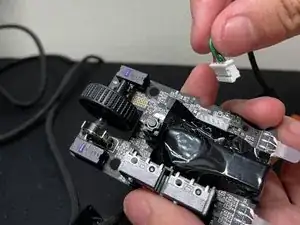

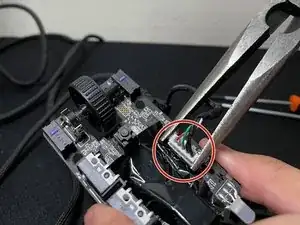

  6. yA3yeroBK2jnLhQd
    yA3yeroBK2jnLhQd
    rCnXCIOGnqEcJHve
    trVCK5k6sTIKVhuk

    • Use your small chain nose pilers to remove the molex power connection cable from the PCB.

    • Wiggle the port slightly while grasping the ends it in order to release it safely.

    • Do not use a large amount of force as you can easily damage your mouse's PCB.

    • Remove the PCB from the bottom plate.

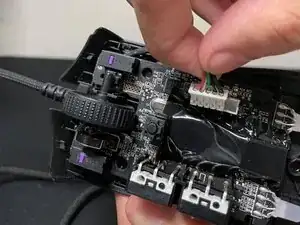

  7. LkpMvEQrlPSNfkJU
    LkpMvEQrlPSNfkJU
    XVy6XBHEAkihSS26
    fkuxugX1SXXSR2wm

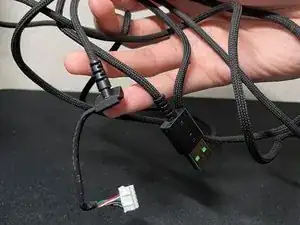

    • Remove the old cable.

    • Make sure your new mouse cable has a 5-pin molex connector that is compatible with the Razer Viper's PCB.

    • Route the cable through the previous route that the original cable was in, remembering to press down with your Phillips #0 screwdriver so the PCB can fit nicely on top.

    • Lastly, plug the molex power connector of the new cable back into the PCB of the Razer Viper Mini and make sure it is tightly fitted.

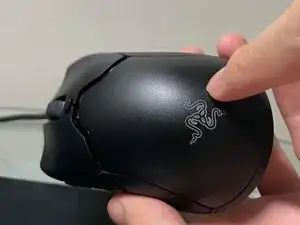

  8. qLO2toPMwCUNapfp
    qLO2toPMwCUNapfp
    koZbSSAxy1qaelpv
    a4mjRSfSwN5sW14j

    • Use the Phillips #0 to replace the five 2.5 mm screws to secure the PCB. Then, place the mouse shell back on.

    • Start from the top of the mouse and make sure it is securely fitted by the sound of the clicks before you start pushing the bottom.

    • Once the top shell is back on securely, you can put the backplate back on. Make sure it clicks when you put it back on.

  9. J3hZgn1dQKr2QjtN
    J3hZgn1dQKr2QjtN
    qT4HubRrwoac2XOK

    • Use the Phillips #0 screwdriver to place the three 2.5mm screws into the bottom plate.

    • Now, once all of the screws are in and the mouse is assembled once again, you are ready to plug it back into your desired USB port and start using the mouse again!

Abschluss

Remember to make sure all of the screws are tightly fitted and the molex cable is fitted tightly before you plug the mouse back into the USB source.
