Razer Viper Mini Scroll Wheel Replacement

Geschrieben von: Addison

Kommentare: 1

Razer Viper Mini Scroll Wheel Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 Minuten

Einleitung

The Razer Viper Mini may experience faulty scroll wheel operation, such as a stuck wheel or having a non-functional scroll wheel click. This guide will show you how to access the scroll wheel for cleaning or replacement.

Werkzeuge

Schritt 1

Opening the mouse casing will void any warranty that exists for the mouse.
Make sure to unplug the mouse before doing anything.
Turn the Mouse Over so the bottom is facing up.
Remember to take a photo of your serial number or write it down

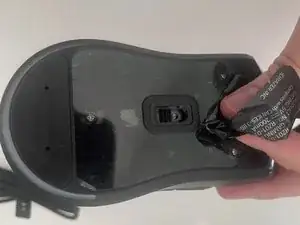

Take off the information sticker and the plastic cover from the bottom of the mouse.

Schritt 2

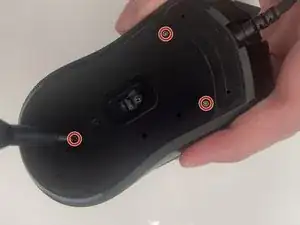

Use the Phillips #0 screwdriver to remove the three 2 mm screws from the bottom of the mouse.

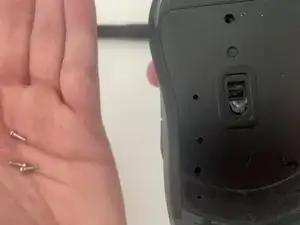

When removing the screws, unscrew them each slightly and consecutively until you can pull them out with your hands.

Schritt 3

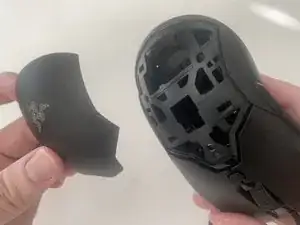

Use the plastic spudger to gently lift the backplate from the mouse shell.
Insert the spudger into the bottom back of the mouse and slowly move it around the mouse to release the backplate.
Do not try to push or jab the mouse with the plastic spudger with a large amount of force, this can damage the plating of your mouse.

Schritt 4

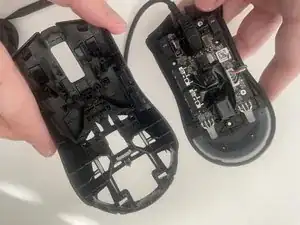

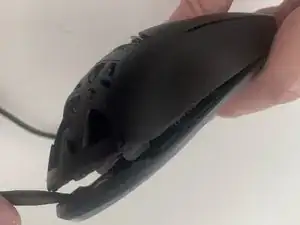

Use the plastic spudger once again to remove the top shell of the mouse.
It is similar to the previous step, as you have to pry the plastic spudger gently into the bottom of the mouse and move it slowly inwards and upwards to release the shell.
Separating the casing too quickly could damage the ribbon connector between the motherboard and the cable.

Schritt 5

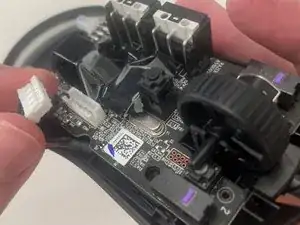

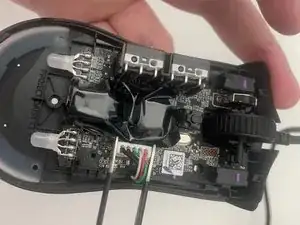

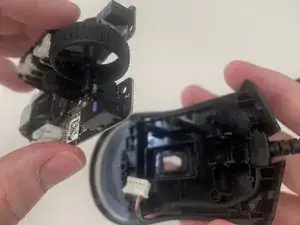

Disconnect the ribbon connector between the motherboard and the USB cable by squeezing the connector and pulling up.
Pulling too hard could damage the wire connections.
Pulling by the ribbon instead of the connector can dislocate the wires.
