The Razer Blade 14" (2017) battery breaks down over time. Therefore, my team and I provided a guide to assist our audience. Use this guide as a DIY before purchasing a new computer or part.

A computer's battery is in good shape for 2-4 years. Depending on how well it's taken care of, the damage to the battery could either drain quicker than normal or stop charging completely.

If the battery is physically broken, it is time to buy a whole new computer.

  1. Hxkn3KnWctr3ATtx
    Hxkn3KnWctr3ATtx
    pGTqNmnjMu2BZXPC
    HwHnM2MeNpkGEvkw

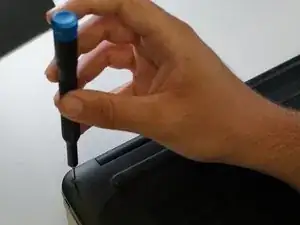

    • Power off the laptop.

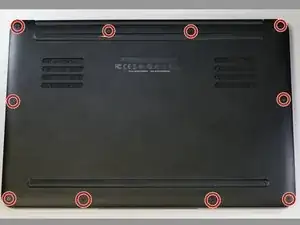

    • Use the T5 Torx screwdriver to unscrew the 10 screws found at the bottom of the laptop. Then, remove the back plate of the laptop.

  2. EVLQedXg1D16Ch3B
    EVLQedXg1D16Ch3B
    uMSubg2D5YuZeTGe
    PBTELfBXgyM5vZjX

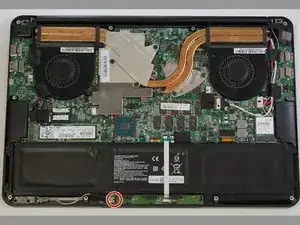

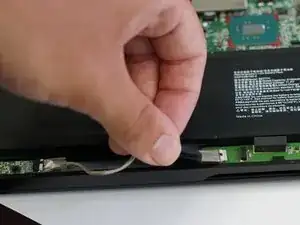

    • At the bottom left corner of the battery, grab and pull the power indicator cable towards the left to disconnect it.

  3. r4hKfGHFiJWtL6Ws
    r4hKfGHFiJWtL6Ws
    33veR1U6osBt5Oft
    AHpsPBloS14JiPEQ

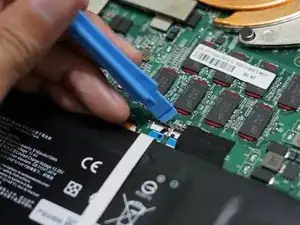

    • At the top center of the battery, use the opening tool to flip the ribbon cable ZIF latch up.

  4. pxYlW6fYs4wVEiAV
    pxYlW6fYs4wVEiAV
    mhmYnUgNQkSFmvum
    Id2SUx2hNNgS3SvK

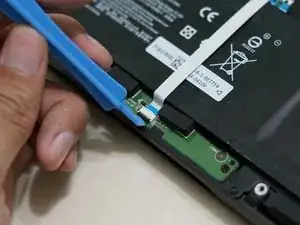

    • At the bottom center of the battery, use the opening tool to flip the ribbon cable ZIF latch up. (similar way from step 3)

    • Slide both ends out of the ZIF connector. Remove the touchpad ribbon cable that overlaps the battery.

  5. AxKA5DuK2UegifAS
    AxKA5DuK2UegifAS
    JgAynlPqRVl34KVY
    IFJrNTJTx2QBnZAB

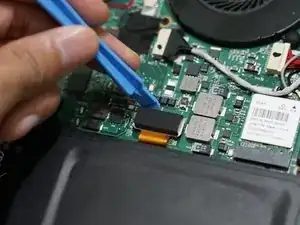

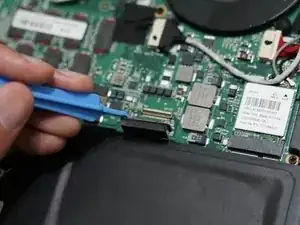

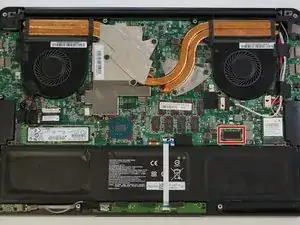

    • At the top right side of the battery, use the opening tool to disconnect the battery cable from the motherboard.

  6. ntkrdpoHwY5wmXiJ
    ntkrdpoHwY5wmXiJ
    awQGATa16endMRv2

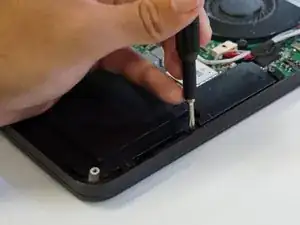

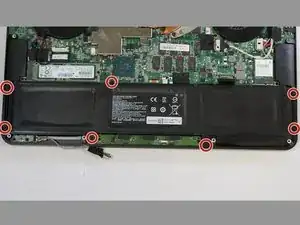

    • Use a Phillips #1 screwdriver to remove all 7 screws.

  7. v2AA1jNF2IYXJnQL

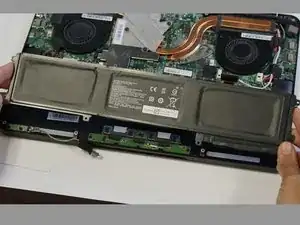

    • Remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
