If your Razor AW Kick Scooter has a worn out wheel bar or the wheel bar is disturbing your performance, follow this guide to replace it or remove it altogether.

The wheel bar is a scooter part that can be used for performing tricks or as a footrest stand when using the scooter for transportation.

  1. dRZAGppMJabWbCCc
    dRZAGppMJabWbCCc
    lUJSTfHOGmInjmN6
    fUw63Xmxh4PDlVcV

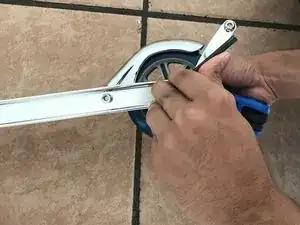

    • Place the scooter on its side and on the ground.

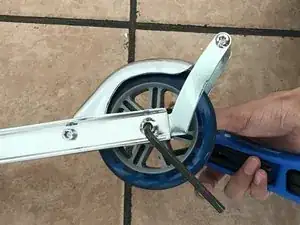

    • Place the 5 mm Hex Security key into the screw, and secure the other side of the screw with another 5 mm Hex Security key to keep it from spinning around.

    • Remove the screw using the 5 mm Hex Security key.

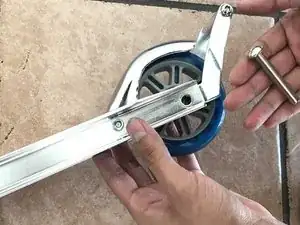

    • Remove the screw from the scooter frame.

  2. V2oM4apXnUwAsPbh
    V2oM4apXnUwAsPbh
    J3SdfvHfuXe2TNpI
    phcQay2hKPTGnPtg

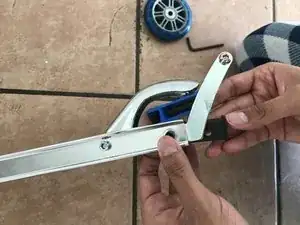

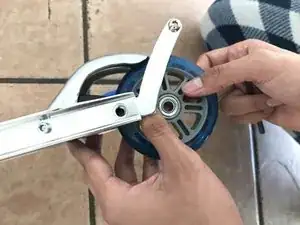

    • Remove the wheel from the scooter slowly.

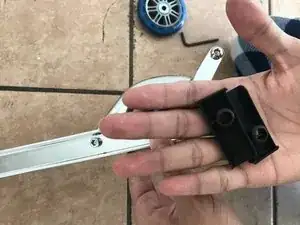

    • Remove the black wheel holders from the scooter frame.

  3. NM361Z3osAHys33x
    NM361Z3osAHys33x
    pqkBM2Pm6ss6eC15

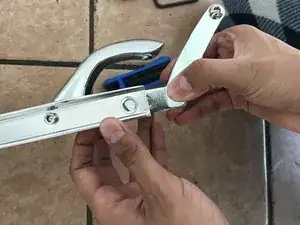

    • Remove the wheel bar from the scooter frame.

Abschluss

To reassemble your device, follow these instructions in revise order.
