Use this guide to replace the lift cylinder in a Realspace EC600 office chair.
The lift cylinder is a mechanical actuator used to raise and lower a desk chair. The lever under your chair is used to let air in and out of the cylinder which will cause it to go up or down. Over time and through frequent use, this cylinder can start to slowly sink down because the air is leaking out of it. If your desk chair is starting to slowly sink down, then you can easily replace your lift cylinder.
Ersatzteile
-
-

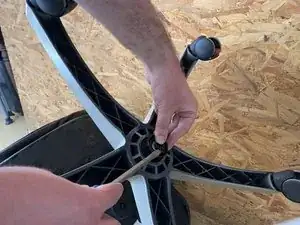

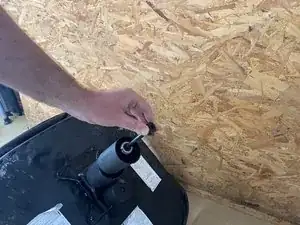

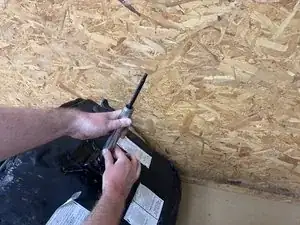

Remove the spring retaining clip by lifting with the flathead screwdriver and sliding it off with your thumb.
-

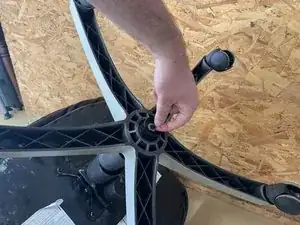

Remove the washer that was underneath the clip.
-
-
-

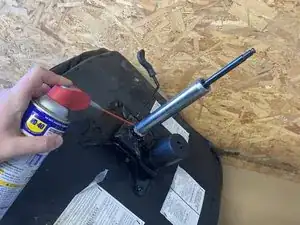

Spray WD-40 around the base of the lift cylinder.
-

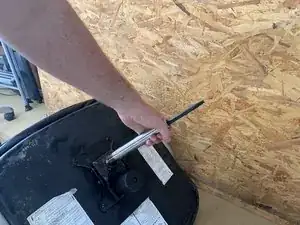

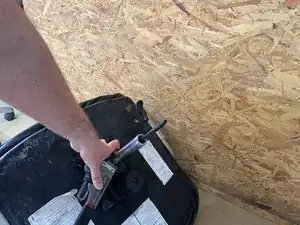

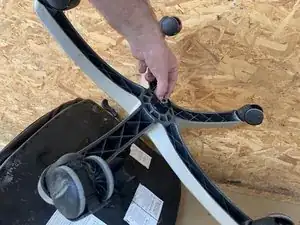

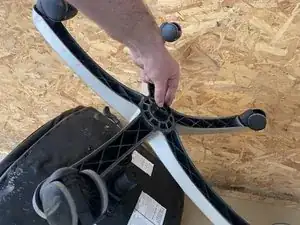

Loosen the cylinder off the chair by rotating it with the pipe wrench.
-
-
-

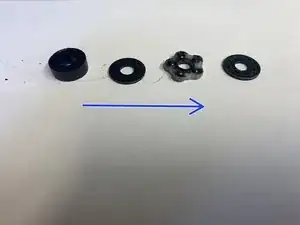

Push the rubber bumper, washers, and bearings onto the lift cylinder.
-
The order should be from the chair to the rubber bumper, washer, bearings, and then the other washer.
-
-
-
Place the washer at the end of the cylinder.
-

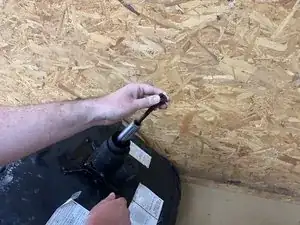

Slip the spring retaining clip onto the end of the cylinder.
-

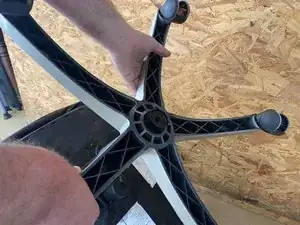

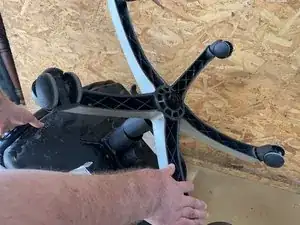

Finally, flip the chair back over and press down on the seat of the chair to make sure the cylinder is completely pressed in.
