Einleitung

  1. ifN2y6jdkSALmF4D
    ifN2y6jdkSALmF4D
    IPiHLkWTAOgZNTTQ
    MeRmPhKNrIfCNXSg
    • The stop/turn signal bulb is located in the outer rear lamp unit that is secured at the rear of each quarter panel

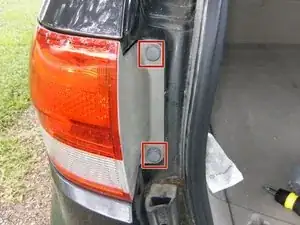

    • Open the tail gate and locate the two fasteners holding the light assembly to the quarter panel.

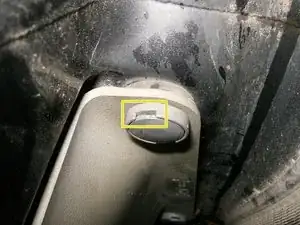

    • Locate the notches in the outer ring of the fasteners. Those are to facilitate the use of a screw driver to remove the fasteners.

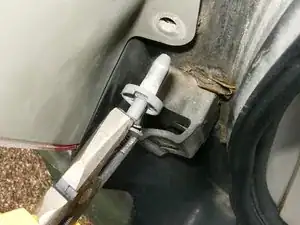

  2. kMtqyUQLgENYH5Zl
    kMtqyUQLgENYH5Zl
    nkR4iy2ubjGwRpO2
    G544CyPlLOHl2RZd

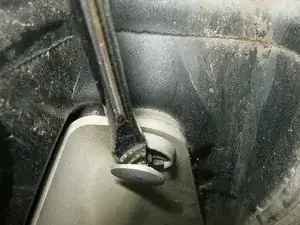

    • Insert a flathead screwdriver or similar tool and pry out the center of the fastener

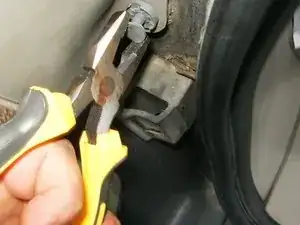

    • A pair of pliers, or similar tool, can be used to get a better hold on the fastener

    • Completely remove the fastener

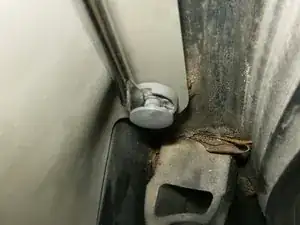

  3. Vcjp2wk1wjXTY6Fy
    Vcjp2wk1wjXTY6Fy
    SHVncWL3GuCAeLLj
    dFVjniUltlBFKLcG

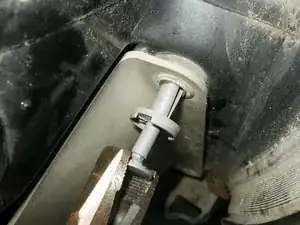

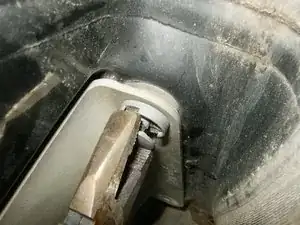

    • Proceed the same way with the bottom fastener. Pry out the center.

    • Use pliers or similar tool to pull the fastener

    • Completely remove fastener

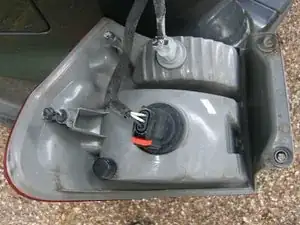

  4. WM1V5aTnUFcCtmE3
    WM1V5aTnUFcCtmE3
    sqDAZVKgtyGWfmii
    GVP6kkWblpT3rYdH

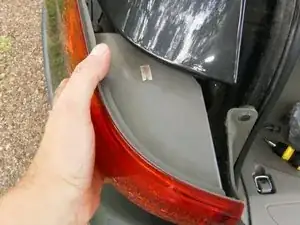

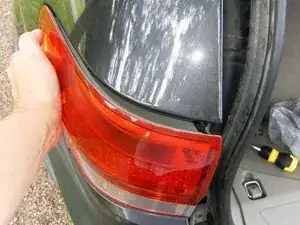

    • The tail light assembly is still held in place by two guide pegs. Gently pull the complete assembly toward the rear of the vehicle to unseat the pegs.

    • Fully remove the tail light assembly

    • The assembly can rest on the top of the rear bumper. The Stop/Turn signal bulb is the larger one of the two bulb fixtures.

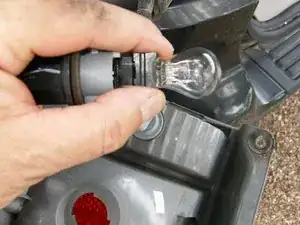

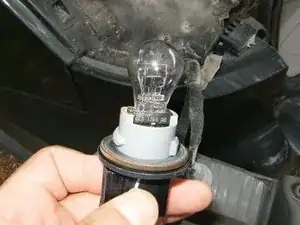

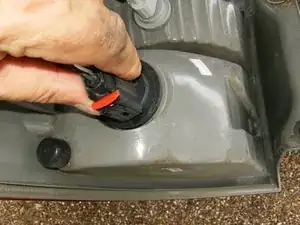

  5. Q2oEMLyJfqUIfuDB
    Q2oEMLyJfqUIfuDB
    OhJZ5gjENbn22wT2
    6VO1wEVBE6MHijUO
    • Remove the bulb socket by turning it about 1/4 turn in a counter clockwise direction

    • Remove the socket from the light assembly

    • Remove the bulb from the socket by pulling it straight out.

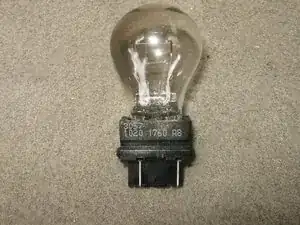

  6. YYYhYPUDJFFwGyAq
    • Replace the burned out bulb with a new type 3057 dual filament bulb

Abschluss

To reassemble your device, follow these instructions in reverse order.

oldturkey03

Mitglied seit: 29/09/10

734572 Reputation

2 Kommentare

What if the trunk don’t open is it possible to change a blinker bulb ?

Shellie Gill -

No. Step 1 picture 2 can't be accessed if it does not open

oldturkey03 -
